Oversized and Panoramic Acrylic Poster Frames / Customizations
- Introduction
- Features and Benefits
- Cleaning and Handling
- Inspirational Photos
- Frame Styles and Insert Sizes
- Frame Display Kits – Single Frame
- Bundles – Set of Four Frames
- Other Frame Options
- Catalog Pages
- Architectural Specifications
- Installation Guides
Our expertise lies in custom work, embracing your design and size preferences. We offer acrylic frames in custom sizes up to 48” x 96”, meticulously laser-cut with exceptional polished edges. Both back (rear) and front (cover) acrylic panels/blanks are made-to-order, available in various sizes and finishes like clear, non-glare, UV-filter, or satin frost. Standard acrylic frames typically feature a 1/4” thick clear back and a 1/8” thick non-glare front cover. Panels are drilled for M6-M10 studs based on the standoff hardware size and style. Choose the appropriate length and diameter of standoff supports according to the frame size and wall projection requirements (for small size panoramic frames up to 12” x 36” inserts use 5/8” or 3/4” diameter standoffs; for medium and large size panoramic frames use or 1” diameter standoffs; for all oversized frames we recommended the use of 1” diameter standoffs only). For special orders under time constraints we are uniquely capable of providing fast turnaround when necessary. To initiate your project, kindly use the Quote Request Form or provided links to specify sizes and details; please note that a minimum order quantity of (4) four pieces or more is required.

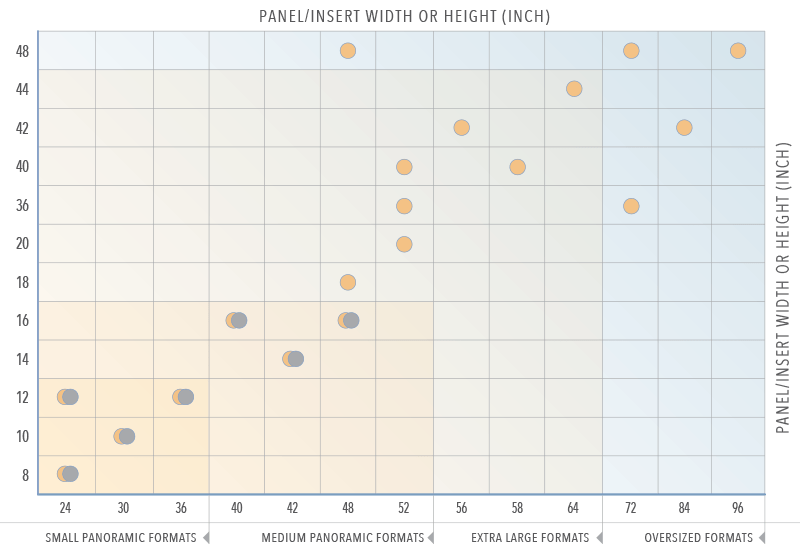

Oversized and Panoramic Acrylic Frame Sizes
Our chart displays the most suitable and commonly used sizes for oversized and panoramic poster framing. While we offer a variety of standard sizes, we also provide the flexibility for custom sizes or unique combinations to meet specific needs. For detailed information on available sizes, feel free to download our brochure.
- Panoramic Frames / Small Size — Displayed by insert size, with the actual acrylic panel being larger to provide a 1-1/4” clear border around the insert.
- Panoramic Frames / Medium — Displayed by insert size, with the actual acrylic panel being larger to provide a 1-1/4” clear border around the insert.
- Oversized Frames — Offered and listed by finished frame/panel size only, without an extra border around the insert.

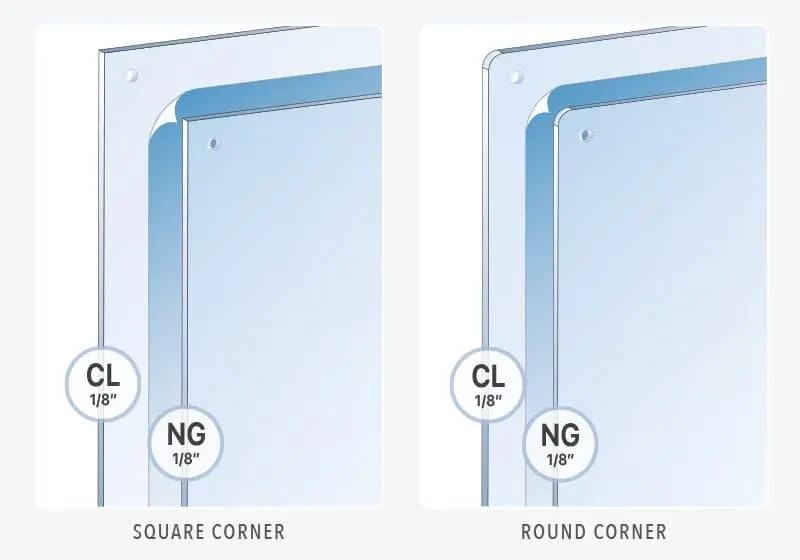

Oversized Acrylic Frame Styles — Corner Options
Elevate your displays with our Clear Acrylic Frames, perfect for showcasing large format photographs, posters, and graphics. Our frames come in a selection of corner styles, each offering a unique aesthetic that complements various decors and settings.
- Square Corners — Frames with straight corners exude a clean and classic look, characterized by sharp lines for a timeless appeal.
- Round Corners — Featuring rounded corners, these frames offer a smooth and solid appearance with a charmingly simple aesthetic.

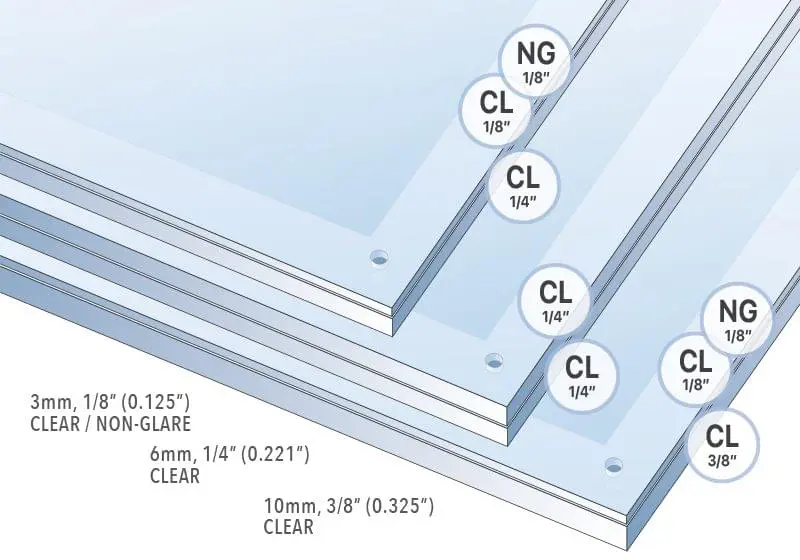

Oversized Acrylic Frame Thickness Options — Front/Back Panel Combinations
The recommended combined thickness for oversized and panoramic acrylic frames are based on the frame size and desired effect and ranges from 9mm (3/8”) to 13mm (1/2”). We offer a selection of frame grade acrylic sheets ranging in thickness from 3mm to 10mm. Acrylic sheets are available in clear, P99 non-glare, OP3 UV-filtering, and more. Acrylic sheets offer exceptional clarity similar to glass and are half the weight and more impact resistant than glass, while meeting the standards of the most demanding framing applications.
We use only premium quality wall mounting standoff hardware — available in a variety of sizes and finishes. Standoff supports come as a two or three part fitting option for easy installation and maximum durability.
- Satin Chrome Brass, Satin Anodized Aluminum, and Brushed Stainless Steel standoffs with a three-part fitting construct are recommended for use with our Deluxe Series frames that have a non-glare finish front cover.
- Clear Anodized Aluminum or Brushed Stainless Steel standoffs with a two-part fitting construct are recommended for use with our Economy Series frames that have a clear gloss finish front cover.
- Polished Chrome Brass or Black Anodized Aluminum standoffs are recommended for use with our Specialty Series frames such as frosted or satin black.

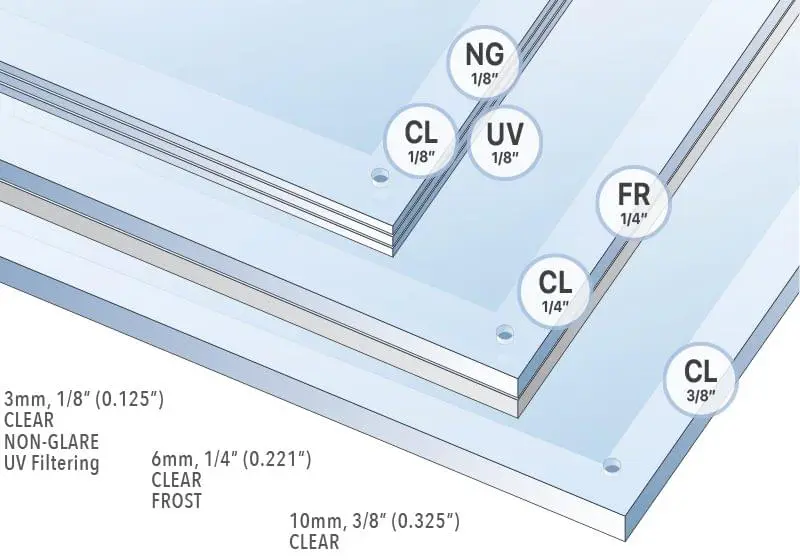

Oversized Acrylic Frame Finish Options — Front/Back Panel Combinations
These are the most common acrylic types and finishes used in fabrication of our oversize and panoramic frame sets. Other options are available upon request.
- 9mm (3/8″) Thick Frames (combined thickness) —Supplied with 6mm (1/4”) thick clear or frost back and 3mm (1/8”) thick clear or non-glare acrylic front.
- 12mm (1/2″) Thick Frames (combined thickness) — Provided with 6mm (1/4”) thick clear or frost back and 6mm (1/4”) thick clear acrylic front.
- 13mm (1/2″) Thick Frames (combined thickness) — Supplied with 10mm (3/8”) thick clear back and 3mm (1/8”) thick clear or non-glare acrylic front.
Our wall standoff supports for acrylic frames are available in two design options and various standard diameters: 12mm (1/2”), 16mm (5/8”), 20mm (3/4”), and 25mm (1”).
- Three-Part Fitting for Easy Installation — These wall supports consist of a standoff spacer/barrel, a wall anchor, and a front screw-cap. Premium standoff spacers feature a 6mm front lip (collar) to facilitate the installation of larger panels.
- Two-Part Fitting for Saving — These wall supports include a standoff spacer/barrel and a front screw-cap. The economy standoff sets come with M10 threaded studs on all screw caps for added savings.
Acrylic poster frames are available in a range of sizes to fit most standard medium and large poster-insert formats. Ideal for displaying posters, prints, photos or fine art reproductions by “sandwiching” them between two pieces of acrylic. Supplied as a set with a standard clear acrylic back and a non-glare (non-reflective) acrylic front panel.
Add-on Products and Services
We offer large format photographic quality printing for posters, graphics and signage at very competitive prices and reasonable lead times. Printing is available on a variety of substrates such as photo paper, polyester films, back-lit films, transparencies, vinyl, label or plastic stock.
For mounting acrylic frames choose from a range of standoff hardware — available in various sizes and finishes such as satin chrome, polished chrome, satin anodized, clear anodized, or stainless steel. Standoff supports are available as a two or three part fitting option for easy installation.
Add depth and enhance the visual appeal of your display with dimensional letters and logos. Depending on your requirements we will fabricate lettering, logos, and special graphics in plastic, metal, and other popular materials with a variety of high quality surface finishes to compliment your display.
