Color Add-ons and Finishes for Architectural Resin Panels
Acrylic resin panels are available in a variety of surface finishes and add-ons that enhance panel appearance and performance. Select the same options for front and back or vary choices based on your design. Standard finishes for front and back will apply unless other finishes are specified. Add-ons are not required.

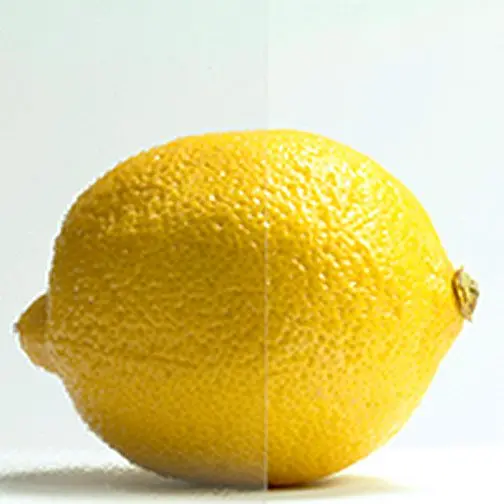

Gloss
Brilliant Shine and Clarity

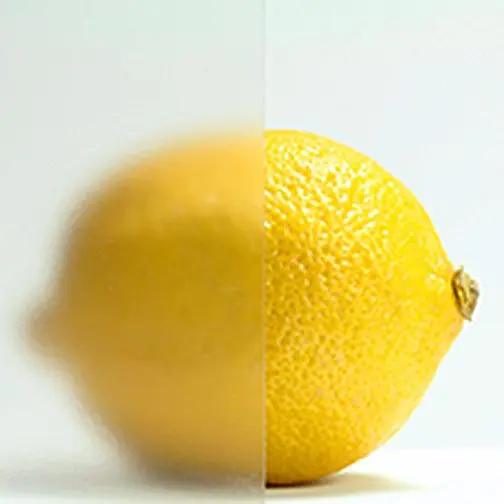

Matte
Smooth Non-Glare Surface
Satin
Subtle Eggshell Texture

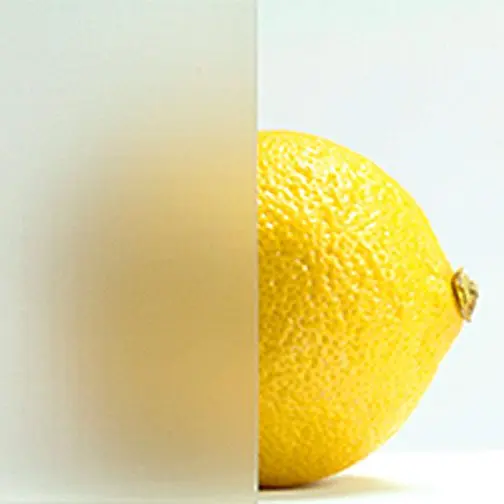

Frost
Diffused Matte Look

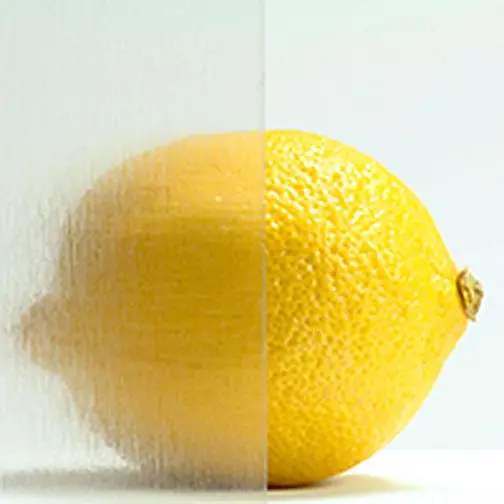

Brushed
Subtle Linear Pattern

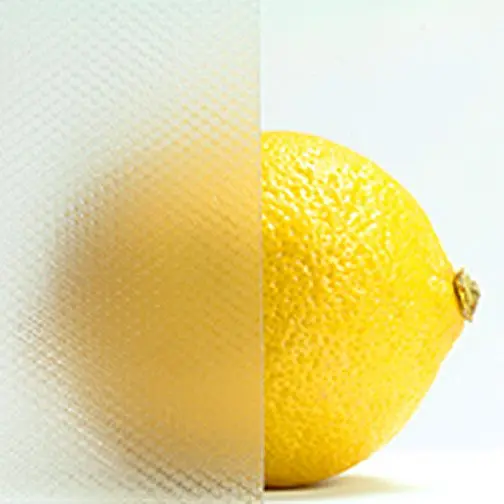

Diffusion
Soft Non-Glare Finish
Surface Finishes
Few surface finishes are available such as gloss, matte, satin, frost, and few other options to provide various levels of opacity. Standard finishes such as matte or satin are applied if none are specified. Finishes are only available on the non-textured side of this décor.
White
Light Blocking® #B100-WT
Misty Grey
Light Blocking® #B200-MG
Ivory
Light Blocking® #B300-IV
Latte
Light Blocking® #B400-LT
Pepperdust
Light Blocking® #B500-PD
Black
Light Blocking® #B600-BL
Light Blocking — Opaque Color Layer
Add a light-blocking layer that creates a fully opaque panel. Use when no light transmittance is desired, such as placing a panel against an unfinished substrate, or if there is a need for privacy. Available in few neutral tones.
Orchid
Luminous® #L100-OR
Blush
Luminous® #L200-BL
Pomegranate
Luminous® #L300-PM
Sunset
Luminous® #L400-SS
Sunflower
Luminous® #L500-SF
Mimosa
Luminous® #L600-MS
Honeydew
Luminous® #L700-HD
Seaglass
Luminous® #L800-SG
Calypso
Luminous® #L900-CL
Pacific
Luminous® #L1000-PA
Bermuda
Luminous® #L1100-BM
Santorini
Luminous® #L1200-ST
Cornflower
Luminous® #L1300-CF
Denim
Luminous® #L1400-DN
Perwinkle
Luminous® #L1500-PW
Mulberry
Luminous® #L1600-MB
Sahara
Luminous® #L1700-SH
Glacier
Luminous® #L1800-GL
Color Spectrum — Additional Color Layer
Add one or few color layers for maximum visual impact. The color films come in matte finish and provides 20% light transmission. Colors can be customized by adding up to two additional color layers. Standard color chart matches the Luminous Décor Collection.
HOW TO ORDER:
Standard panel/sheet size is 48″ x 96”. Panels are available in 0.118” (3mm), 0.236″ (6mm), and 0.354″ (9mm) thicknesses with no special edge finishing.
- Request Customization — If you have a special request and require customization, such as cutting panels to size or edge finishing, please use our Inquiry/Quote Request Form to contact us.
We provide two options for cutting acrylic resin panels — saw cut or CNC router cut. The saw cut provides an unfinished edge and require further hand edge finishing hand-work. Saw cut parts can be made with an eased edge and gloss/matte edge finish. Matte edge finish is less expensive than gloss edge finish. Router cutting requires approved shop drawings prior to production.
- Saw Cut — there is no minimum fee for simple saw cutting. (Sheets of material cut in half or into quarters). The saw cutting kerf is less (0.17) providing a better yield if only saw cutting is needed. It is less expensive to have the sheets saw cut.
- CNC Router Cut (Pencil Profile) — the pencil edge finish can only be applied with the router. This is the only edge finishing service that is not applied by hand, which makes it more economical in a lot of situations. The router cutting kerf with pencil profile is (0.80). You may get a better yield with saw cutting. Pencil Edge profile is not an option on 1/8” (eased edge is offered). Pencil edge profile starts at 1/4” gauge material.
- Acceptable Tolerance — length and width +.50″/-.25″ thickness ±10%
- Terms — all architectural décor acrylic resin panels are made-to-order and 100% deposit is due at the time of order (or a 65% deposit is due before production and balance due prior to shipping.
- Lead Time — 3 to 5 weeks
Note: Resin panels may not be available in every thickness or sheet size and varies by decor style. Add-ons and other finishes are only available on the non-textured side of décor.
