Cable suspended displays on rails/tracks are an innovative solution for displaying prints, posters and graphics. They provide a quick and easy way to change and update information. Standard kits are supplied with cable suspension hardware and rails to mount directly to walls or suspend from ceiling-to-floor. Easy access acrylic poster frames of various formats can be suspended from the vertical cables. Several frames can be positioned one above the other or side by side. The entire display can be easily customized or re-configured.
Rail/Track Tensioned Cable Suspended Info/Poster Display Kits
Popular Display Kits in Ceiling-to-Floor Configuration

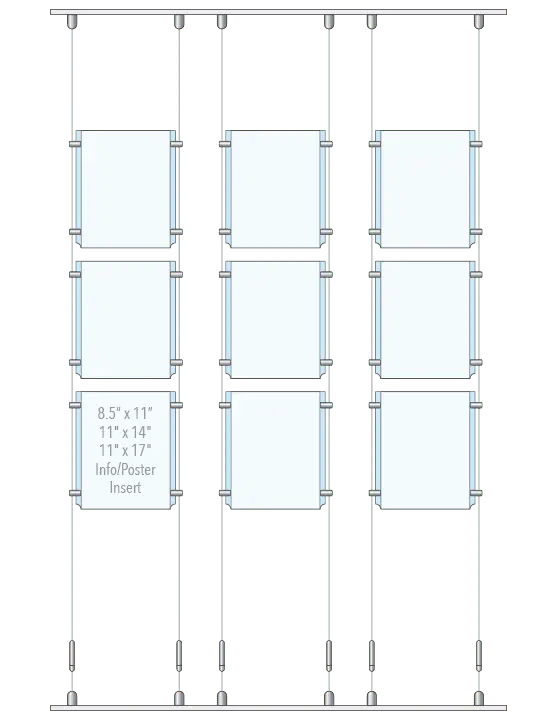

KART-100
INSERT SIZE: 8.5″x11″, 11″x14″, 11″x17″
STYLE: Easy Access Acrylic Holder / Classic
ORIENTATION: Portrait
CONFIGURATION: 3 Column / 3 x 3 Grid
VIEW: Single / Double-Sided
FIXING TYPE: 1.5mm Cable Suspended / Ceiling-to-Floor Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″

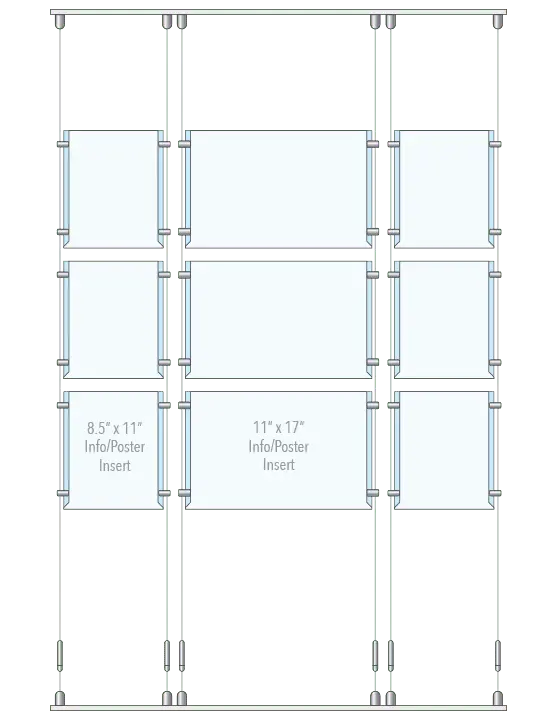

KART-102
INSERT SIZE: 8.5″x11″, 11″x17″
STYLE: Easy Access Acrylic Holder / Classic
ORIENTATION: Portrait / Landscape
CONFIGURATION: 3 Column / 3 x 3 Mix Grid
VIEW: Single / Double-Sided
FIXING TYPE: 1.5mm Cable Suspended / Ceiling-to-Floor Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″

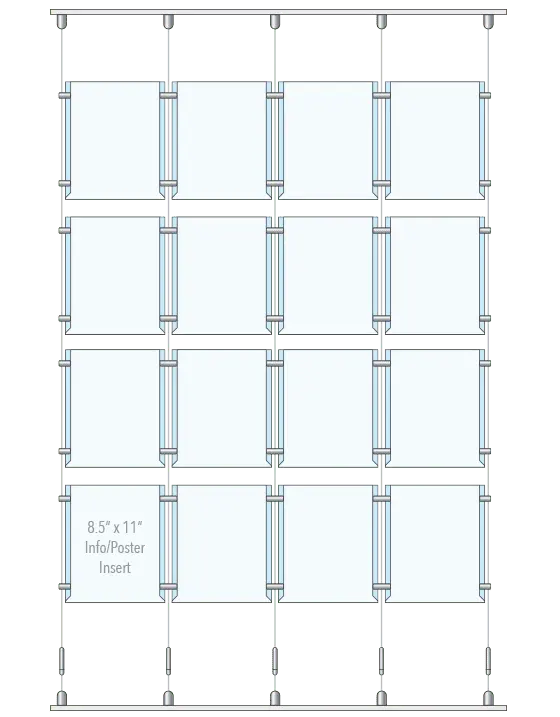

KART-112
INSERT SIZE: 8.5″x11″
STYLE: Easy Access Acrylic Holder / Classic
ORIENTATION: Portrait
CONFIGURATION: 4 Column / 4 x 4 Grid
VIEW: Single / Double-Sided
FIXING TYPE: 1.5mm Cable Suspended / Ceiling-to-Floor Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″
KART-121
INSERT SIZE: 11″x17″
STYLE: Easy Access Acrylic Holder / Classic
ORIENTATION: Portrait
CONFIGURATION: 3 Column / 3 x 2 Grid
VIEW: Single / Double-Sided
FIXING TYPE: 1.5mm Cable Suspended / Ceiling-to-Floor Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″
Popular Display Kits in Wall-to-Wall Configuration
KART-105
INSERT SIZE: 8.5″x11″, 11″x14″, 11″x17″
STYLE: Easy Access Acrylic Holder / Classic
ORIENTATION: Portrait
CONFIGURATION: 2 Column / 3 x 2 Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Wall-to-Wall Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″

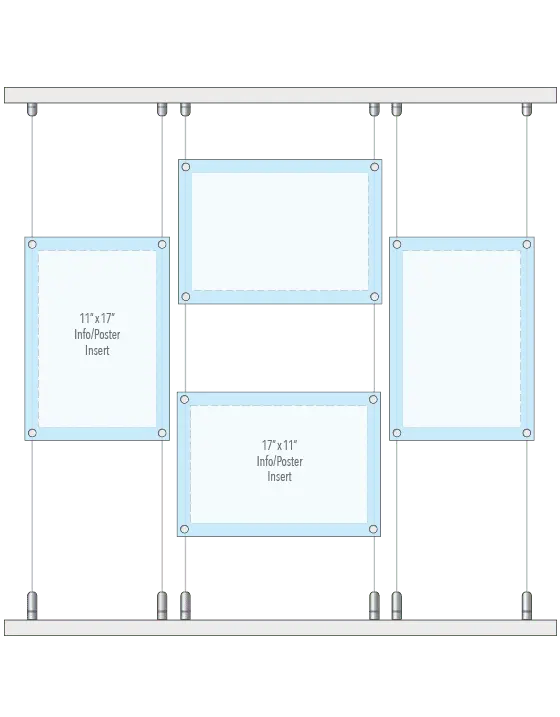

KART-106
INSERT SIZE: 8.5″x11″, 11″x17″
STYLE: Easy Access Acrylic Holder / Classic
ORIENTATION: Portrait / Landscape
CONFIGURATION: 3 Column / 3 x 2 Mix Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Wall-to-Wall Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″
KART-113
INSERT SIZE: 11”x17”
STYLE: Easy Access Acrylic Holder / Classic
ORIENTATION: Landscape
CONFIGURATION: 2 Column / 2 x 3 Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Wall-to-Wall Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″

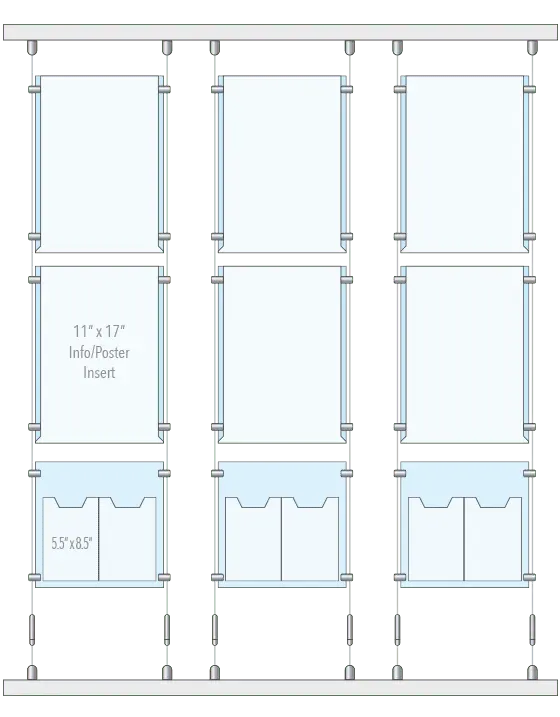

KART-122
INSERT SIZE: 8.5″x11″, 11″x17″
STYLE: Easy Access Acrylic Holder / Classic with Brochure Holders
ORIENTATION: Portrait
CONFIGURATION: 3 Column / 3 x 2 Mix Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Wall-to-Wall Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″
More Design Concepts and Ideas — Standard Display Kits
Rail/track tension cable suspended displays offer modularity and flexibility and can be easily re-configured or modified to adapt to new changes and updates. Select from the standard display kits and concept ideas listed below to request a price quote or visit our Online Store for more options and configurations. For all your special requests, please use the Inquiry/Quote Request Form to contact us.
KART-100
KART-102
KART-105
KART-106
KART-112
KART-114
KART-115
KART-116
KART-117
KART-118
KART-119
KART-120
Compatible Display Systems
Tensioned Cable Suspension System for Rails/Tracks — available in 1.5mm diameter cable suspension kits to include ready-crimped cables, tensioners, and top/bottom or toggle-end fixings for rails. Standard kits are provided with 4 meter (13′ 1-1/2′′) long cables. Cables can be shortened in place during installation. Overall display width and height may vary. Use standard cable suspension kits (CA4, C101-4M) with PA8 toggles in most common applications. Multiple cables can be shared to create a much wider display that can span the entire wall area by joining rails/tracks and adding as many columns or rows as needed.
- Use quick-fit cable suspension sets (CQQ) for applications that require periodic adjustments or reconfiguration of your display design.
- Use cable side-grip panel supports (CG01, CG02, CG03, CG04) to suspend easy access acrylic holders, info/logo panels, literature dispensers, or sandwich style acrylic frames without holes.
- Use cable supports with stud-caps (CS13) to suspend acrylic blanks/sandwich frames with M4 holes.
- Use cable top/bottom supports (CG09) to suspend info/logo panels on top of your display presentation (use with panels wider than distance between cables).
- Use aluminum rails/tracks with double-sided channel for wall-to-wall display applications. Profiles are also available perforated at one or both ends for use with in-line connectors. Based on your overall display length we determine and specify the number of sections, type of rail, and size needed. Most of our aluminum rails/tracks are supplied in 48″, 60″, 72″, 84″, 96″ or custom lengths.
- Use the wall bracket (MSB-25) and toggle set (PA8) to mount rails/tracks directly to wall (position the bracket so the screw wall mount portion is covered by the rail — see details in install guidelines).
COMPATIBLE FITTINGS: CA4, C101-4M, PA8, CQQ, CG01, CG02, CG09, CG14, AC-CHANNEL, 18EAAP-HOLDERS, 18ASP-FRAMES.
