Framed Display with Rail-Track Tensioned Suspended Cables / Configurations
- Introduction
- Features and Benefits
- Cleaning and Handling
- Inspirational Photos
- Materials and Finishes
- Hardware Options
- Capabilities and Add-ons
- Catalog Pages
- Architectural Specifications
- Installation Guides
Our cable/rod display systems are perfectly suited for creating stylish framed presentations. We provide a variety of prefabricated or custom fabricated frames for displaying artwork, photographs, collectibles, and other items. Frames are made of acrylic, hard wood, or aluminum profiles. They are great for displays that are changed frequently, as the cable/rod fixings allow the displayed items to be moved along the channel or easily removed without any damage to walls.
Rail/Track Tensioned Cable Suspended Framed Display Kits
Popular Display Kits in Wall-to-Wall Configurations
KART-205
INSERT SIZE: 8.5″x11″
STYLE: Aluminum Top-Load Frame / Silver
ORIENTATION: Portrait
CONFIGURATION: 3 Column / 3 x 3 Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Wall-to-Wall Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″

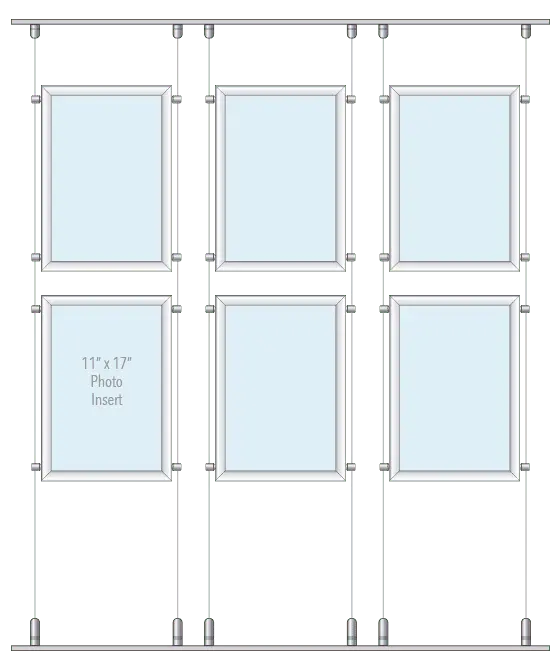

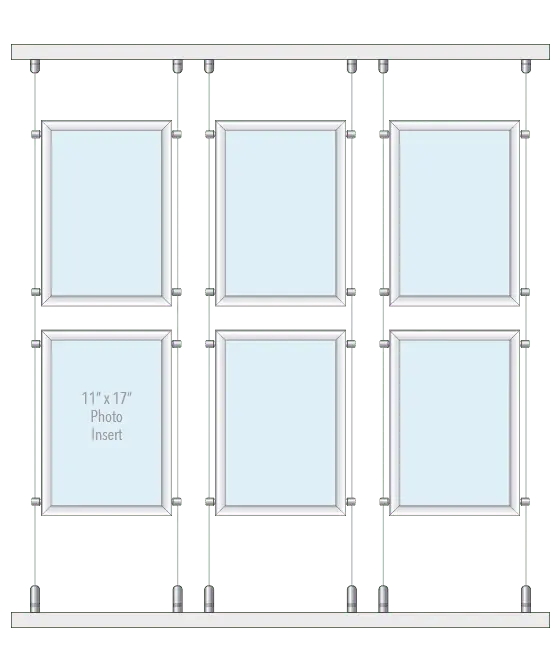

KART-206
INSERT SIZE: 11″x17″
STYLE: Aluminum Top-Load Frame / Silver
ORIENTATION: Portrait
CONFIGURATION: 3 Column / 3 x 2 Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Wall-to-Wall Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″

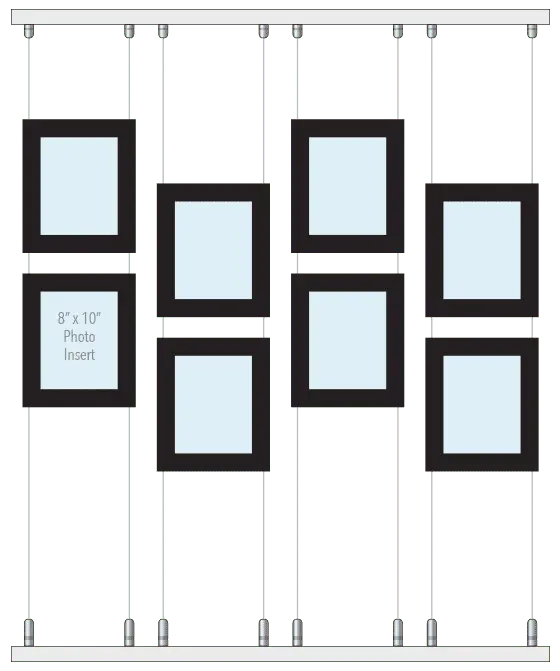

KART-207
INSERT SIZE: 8″x10″
STYLE: Acrylic Top-Load Frame / Black
ORIENTATION: Portrait
CONFIGURATION: 4 Column / 4 x 2 Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Ceiling-to-Floor Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″
KART-218
INSERT SIZE: 8″x10″, 12″x18″
STYLE: Acrylic Top-Load Frame / Black
ORIENTATION: Portrait
CONFIGURATION: 3 Column / 3 x 2 Mix Grid
VIEW: Single Sided
FIXING TYPE: 1.5mm Cable Suspended / Wall-to-Wall Rail/Track Mounted
CABLE LENGTH: 4M (13′ 1-1/2″)
WIDTH: 48″

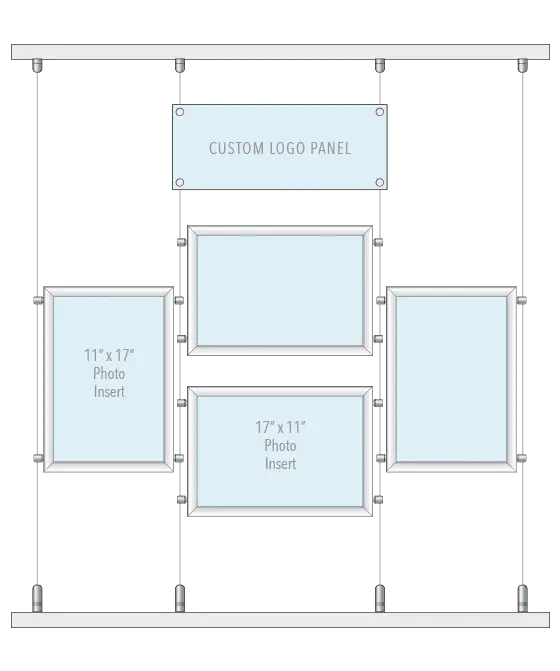

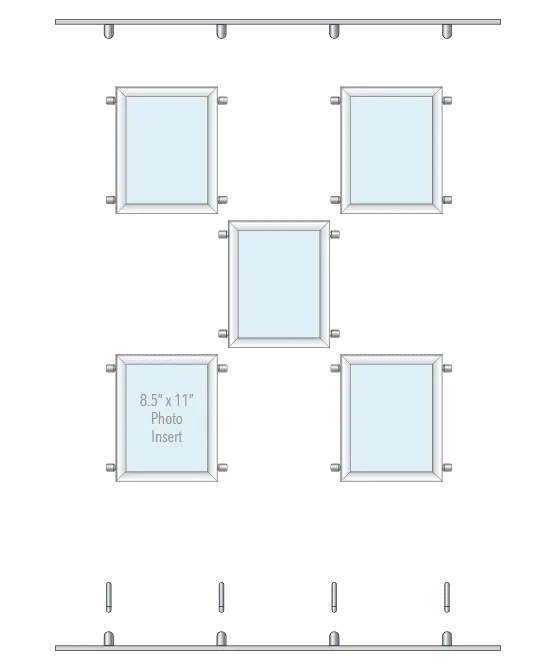

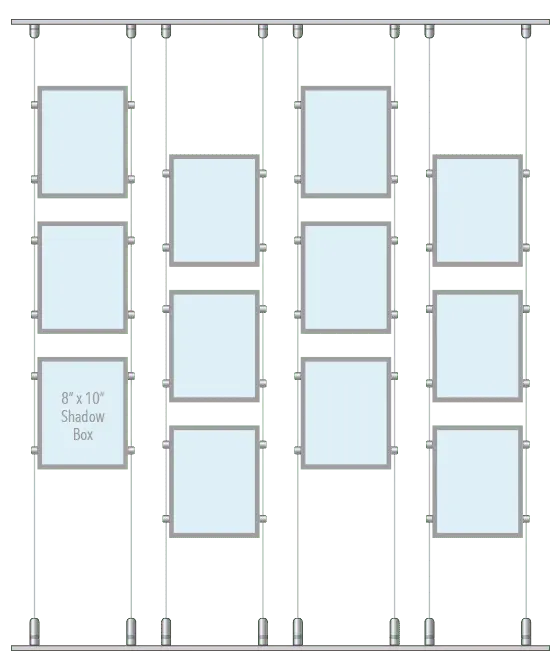

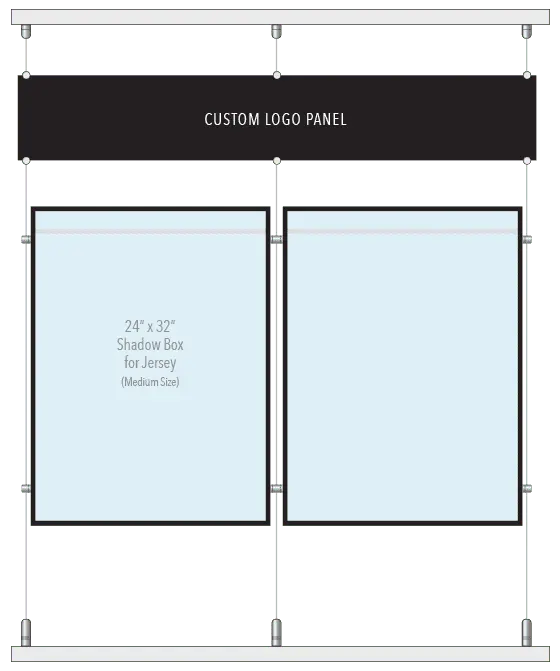

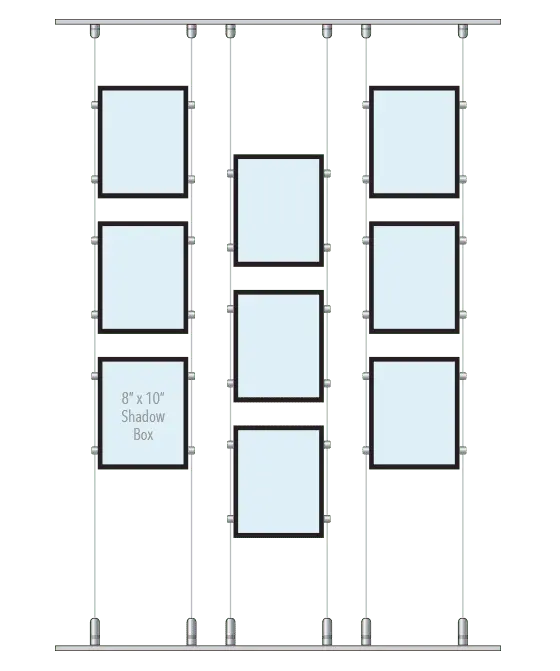

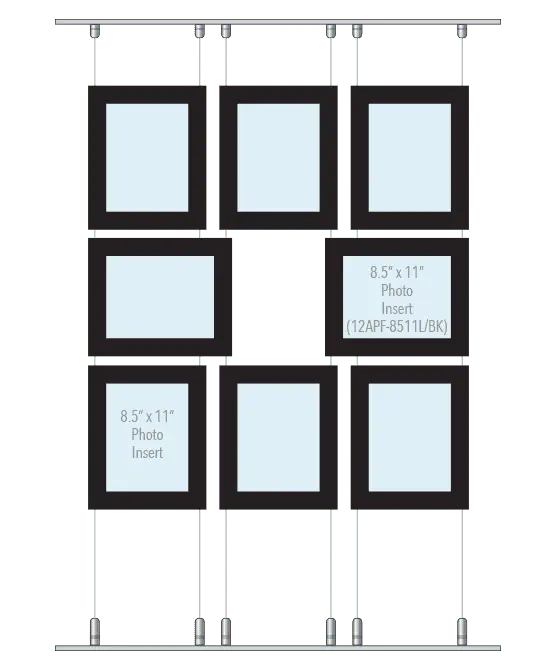

More Design Concepts and Ideas — Standard Display Kits
Rail/track tension cable suspended displays offer modularity and flexibility and can be easily re-configured or modified to adapt to new changes and updates. Select from the standard display kits and concept ideas listed below to request a price quote or visit our Online Store for more options and configurations. For all your special requests, please use the Inquiry/Quote Request Form to contact us.
KART-206
KART-207
KART-208
KART-209
KART-210
KART-211
KART-212
KART-213
KART-214
KART-215
KART-216
KART-217
Compatible Display Systems
Tensioned Cable Suspension System for Rails/Tracks — available in 1.5mm diameter cable suspension kits to include ready-crimped cables, tensioners, and top/bottom or toggle-end fixings for rails. Standard kits are provided with 4 meter (13′ 1-1/2′′) long cables. Cables can be shortened in place during installation. Overall display width and height may vary. Use standard cable suspension kits (CA4, C101-4M) with PA8 toggles in most common applications. Multiple cables can be shared to create a much wider display that can span the entire wall area by joining rails/tracks and adding as many columns or rows as needed.
- Use quick-fit cable suspension sets (CQQ) for applications that require periodic adjustments or reconfiguration of your display design.
- Use cable supports with P02 boss (CS03, CS04 ) to suspend acrylic and wood frames from back or any other item that can be mounted with a screw.
- Use cable supports with CT01 toggle (KCS03/CT01, KCS04/CT01) to suspend aluminum frames from sides.
- Use cable supports with stud-caps (CS13) to suspend acrylic showcases with M4 holes.
- Use cable supports (CS11, CS21) with #6 screw to suspend acrylic and wood frames from sides.
- Use side-grip (CG01) or top/bottom (CG09) cable supports to suspend acrylic info/logo panels or brochure holders.
- Use aluminum rails/tracks with double-sided channel for wall-to-wall display applications. Profiles are also available perforated at one or both ends for use with in-line connectors. Based on your overall display length we determine and specify the number of sections, type of rail, and size needed. Most of our aluminum rails/tracks are supplied in 48″, 60″, 72″, 84″, 96″ or custom lengths.
- Use the wall bracket (MSB-25) and toggle set (PA8) to mount rails/tracks directly to wall (position the bracket so the screw wall mount portion is covered by the rail — see details in install guidelines).
