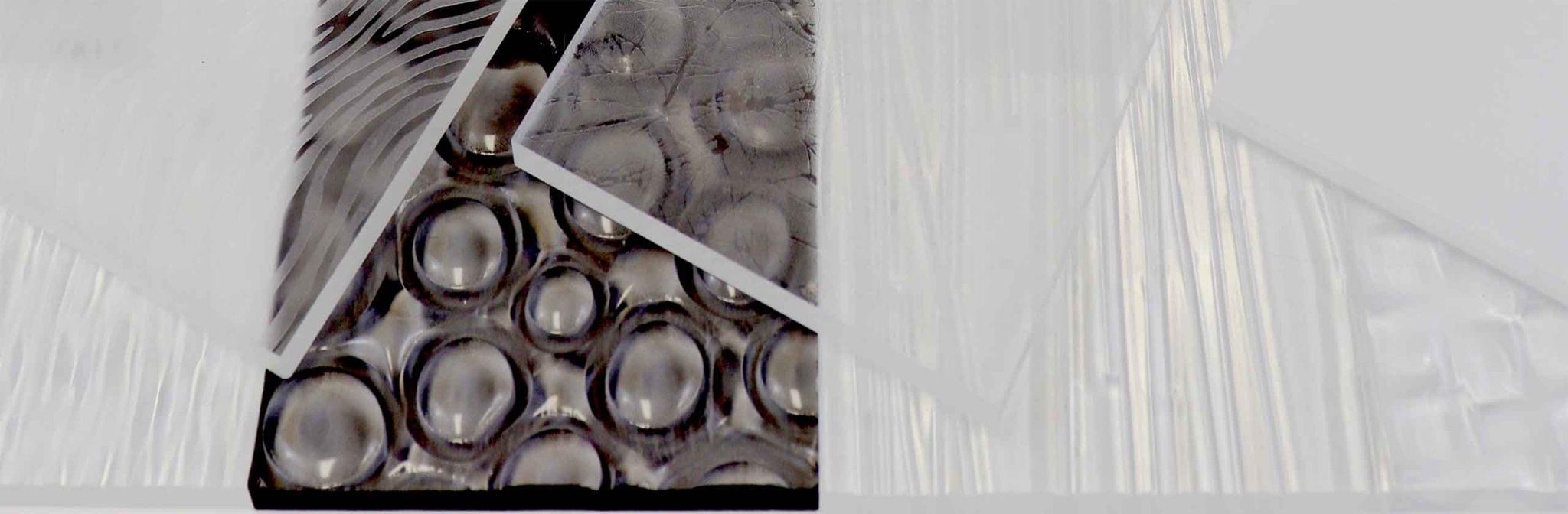

Impressions Embossed/Textured Acrylic Panels

Embossed textured acrylic resin panels are gaining popularity among designers and architects due to their versatility. These panels are well-suited for various architectural applications, including lighting, store fixtures, furniture, partitions, displays, signage, and glazing. By combining textured and colored acrylic sheets, designers can add depth and dimension to their designs. The high light transmission, optical quality, and lightweight characteristics of acrylic sheets make them ideal for use in optical display screens, decorative wall paneling, privacy partitioning, and a wide range of other applications.
Embossed® #E100-ZU
Embossed® #E200-HD
Embossed® #E300-TH
Embossed® #E400-KO
Embossed® #E500-RN
Embossed® #E600-VN

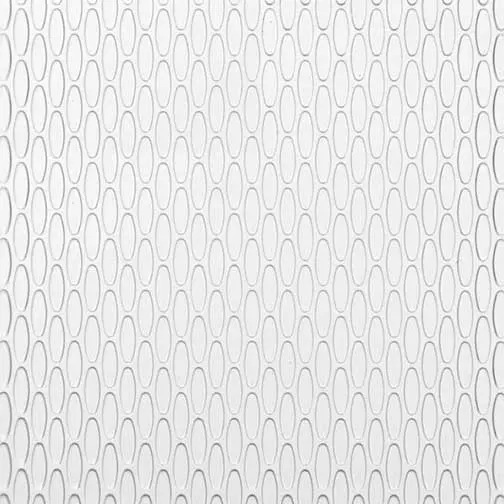

Ovalesque Frost
Embossed® #E700-OF
Embossed® #E800-MZ
Embossed® #E900-DV
Embossed® #E1000-GV
Embossed® #E1100-FS
Embossed® #E1200-TH

Impressions Décors — Patterned and Textured Acrylic Resin Panels

Embossed and textured acrylic panels are fashionable, stylish and highly aesthetic. They are ideal for applications such as decor panels, partitions, privacy, glazing, and furniture components. These acrylic sheets are lightweight, durable, and resistant to breaks and scratches. Available in 0.236″ (6mm) and 0.354″ (9mm) thickness.

Add-ons and Finishes

  • Color Spectrum — Add one or few color layers for maximum visual impact. The color films come in matte finish and provides 20% light transmission. Colors can be customized by adding up to two additional color layers. Standard color chart matches the Luminous Décor Collection.
  • Light Blocking — Add a light-blocking layer that creates a fully opaque panel. Use when no light transmittance is desired, such as placing a panel against an unfinished substrate, or if there is a need for privacy. Available in few neutral tones.
  • Light Diffusion — Add a translucent light diffusing layer, laminated to the back-side of panel. This additional layer helps to spread light evenly across the panel and conceal bulbs and fixtures. The light transmission film comes in matte finish and provides 60% light transmission.
  • Surface Finishes — Resin panels are available in gloss, satin, or matte standard finishes. Other finishes are available upon request.
Standard panel/sheet size is 48″ x 96”. Panels are available in 0.118” (3mm), 0.236″ (6mm), and 0.354″ (9mm) thicknesses with no special edge finishing.
  • Request Customization — If you have a special request and require customization, such as cutting panels to size or edge finishing, please use our Inquiry/Quote Request Form to contact us.
We provide two options for cutting acrylic resin panels — saw cut or CNC router cut. The saw cut provides an unfinished edge and require further hand edge finishing hand-work. Saw cut parts can be made with an eased edge and gloss/matte edge finish. Matte edge finish is less expensive than gloss edge finish. Router cutting requires approved shop drawings prior to production.
  • Saw Cut — There is no minimum fee for simple saw cutting. (Sheets of material cut in half or into quarters). The saw cutting kerf is less (0.17) providing a better yield if only saw cutting is needed. It is less expensive to have the sheets saw cut.
  • CNC Router Cut (Pencil Profile) — The pencil edge finish can only be applied with the router. This is the only edge finishing service that is not applied by hand, which makes it more economical in a lot of situations. The router cutting kerf with pencil profile is (0.80). You may get a better yield with saw cutting. Pencil Edge profile is not an option on 1/8” (eased edge is offered). Pencil edge profile starts at 1/4” gauge material.
  • Acceptable Tolerance — Length and width +.50″/-.25″ thickness ±10%
  • Terms — All architectural décor acrylic resin panels are made-to-order and 100% deposit is due at the time of order (or a 65% deposit is due before production and balance due prior to shipping.
  • Lead Time — 3 to 5 weeks

Note: Resin panels may not be available in every thickness or sheet size and varies by texture style. Add-ons and other finishes are only available on the non-textured side of this décor.
