10mm Rod Display System / Components

Rods & Fixing Components

10 mm Rod Display System comes in a variety of modular components such as rods, top/bottom rod fixings, wall fixings, panel/shelf support fittings, and other finishing components. Use for standard ceiling-to-floor, wall-to-wall suspended applications, or in other special configurations. Standard threaded rod lengths are 1.5m (4′ 11-1/16″), 1m (3′ 3-1/32″), and 0.5m (1′ 7-11/16″). Rods can be adjusted — joined together for longer lengths or shortened in place during installation.

Rod Fixings & Rods

RS-10 top-ceiling fixing screw-fit for 10mm rods


Rod Top Fixing / Screw-Fit

RP-10 push-fit support for 10mm rods


Rod Fixing / Push-Fit with Grub Screw

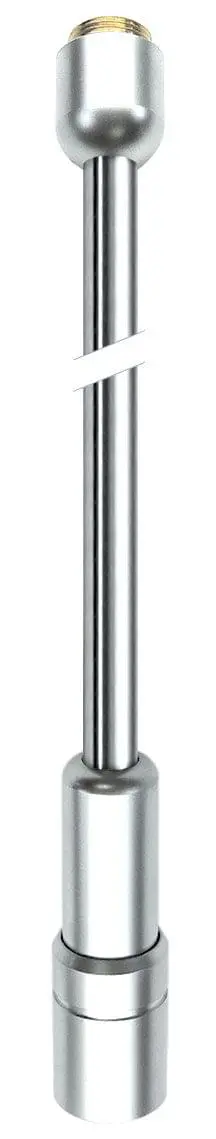

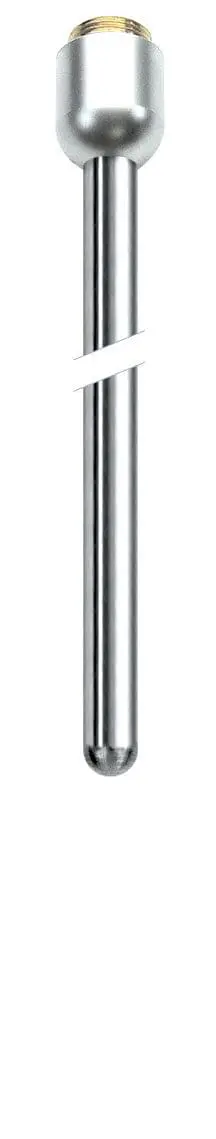

RAS-10 ceiling to floor fixings for 10mm rods


Rod Top/Bottom Fixing Kit

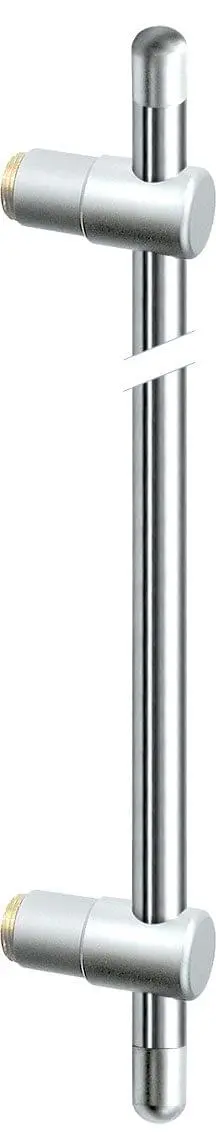

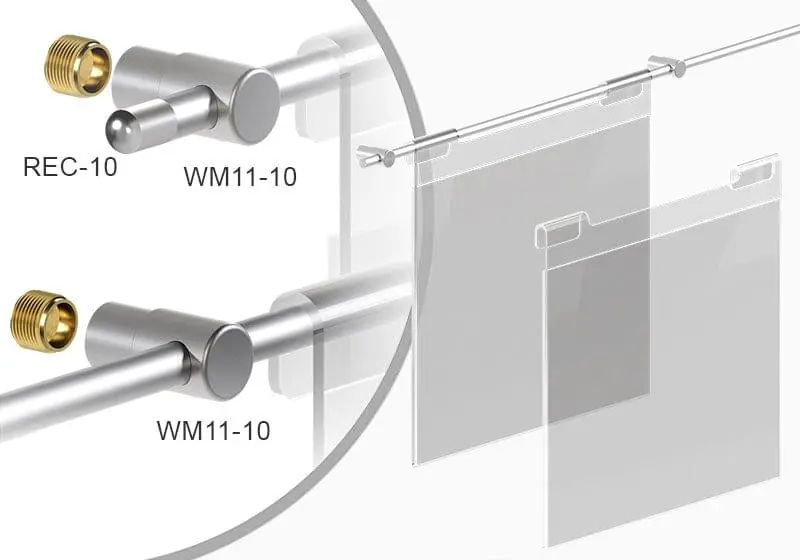

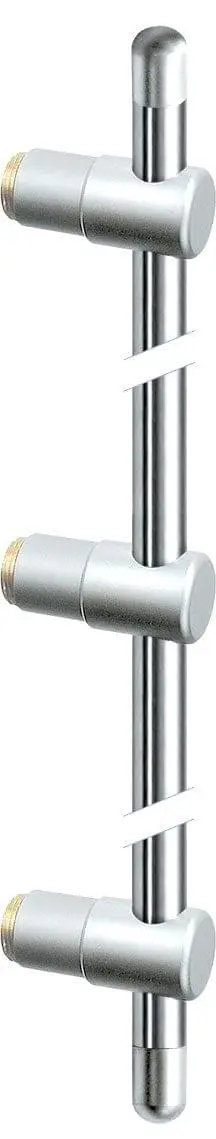

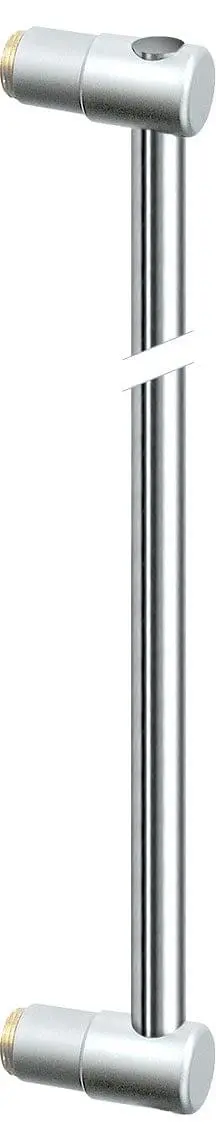

WM11-10 Wall Fixing Support for 10mm Rods


Rod Wall-to-Wall Fixing / Short Projection

WM11L-10 Wall Fixing Support for 10mm Rods


Rod Wall-to-Wall Fixing / Long Projection

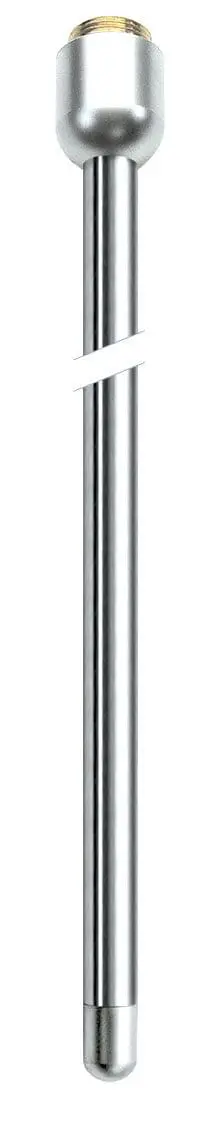

R1500-10 10mm male female threaded rod


1.5M (4′ 11-1/16″) Long Rod Threaded

R1000-10 10mm male female threaded rod


1.0M (3′ 3-3/8″) Long Rod Threaded

R500-10 10mm-dia-male-female-threaded-rod


0.5M (1′ 7-11/16″) Long Rod Threaded

HDS Heavy-Duty Base Support Plate for Cable/Rod Display System


Heavy-Duty Support Plate

P01 Decorative Support Plate for Cable/Rod Fixings


Decorative Support Plate

REC-10 decorative end cap for 10mm rods screw


Decorative End Cap for Rods

CD-10 decorative cover disk


Decorative Cover Disk

*Rod Fixings only — use with 10mm rods. Sold separately.

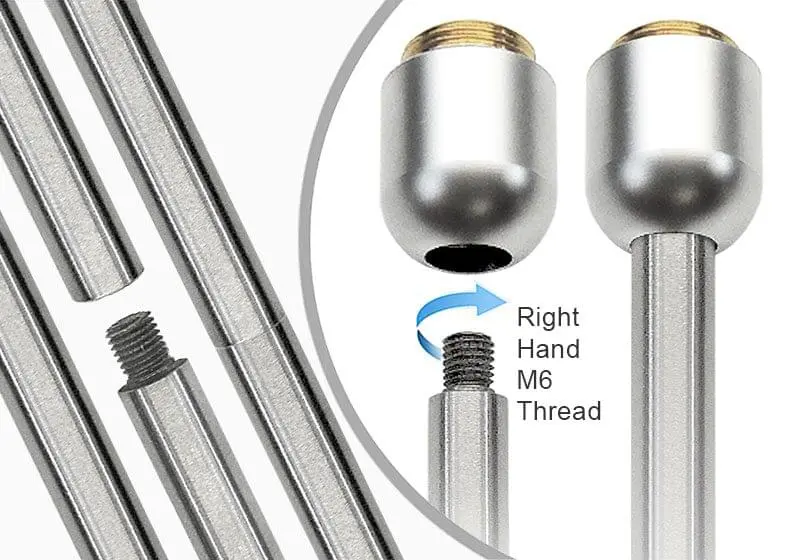

Join Multiple 10mm Rods Together (Right handed with M6 thread)

With a male thread at one end and a female at the other, the rods allow to be screwed into the top fixing or joined together to make longer lengths. Once screwed together the rods look like a continuous rod. Cut the rod with a hack saw at the bottom to achieve the overall required length.


Join Multiple 10mm Rods Together (Right handed with M6 thread)

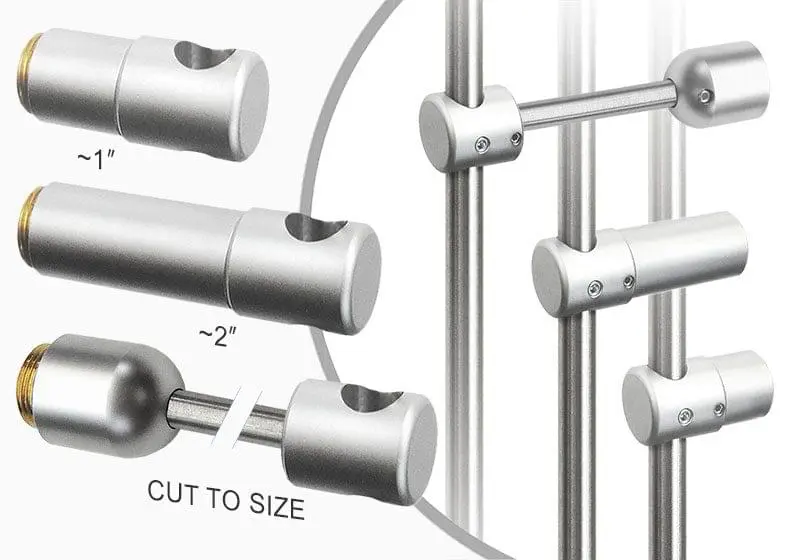

Customized Depth for 10mm Rod Display System

Customized Depth

Fix the support rod back to wall using RP rod support then cut rod to required length and attach it to a vertical suspended rod with RS05, or to a vertical suspended cable with CS05. Use only to stabilize the loaded cables or rods — not intended as a weight support structure.


Panel & Shelf Supports

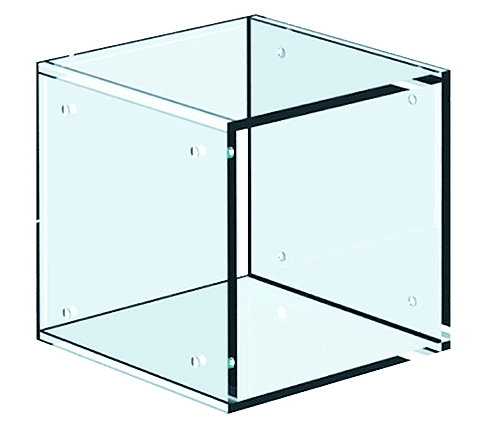

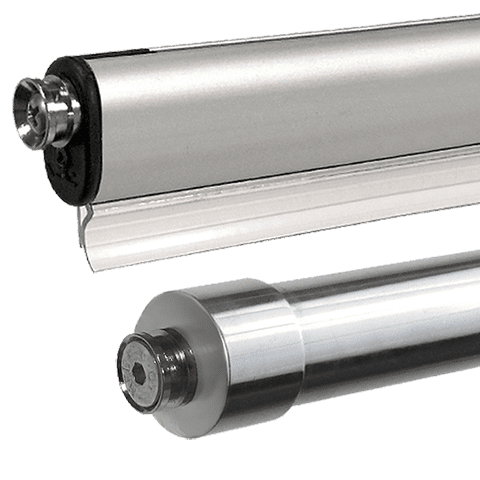

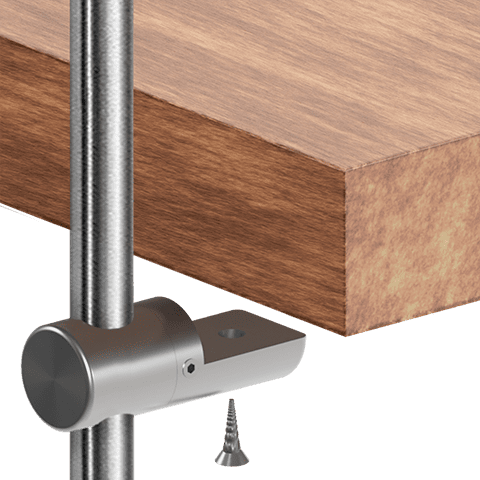

Supplied in a range of single and double-sided clamp supports for panels and shelves, top panel supports for overhead signs, top/bottom supports for front mounted panels, multi-position swivel supports for angled presentations, supports for wooden shelves or display cases, as well as picture hooks and supports for hanging rails and rods. Available in standard sizes to support 1/4″, 3/8″ and 1/2″ thick panels.

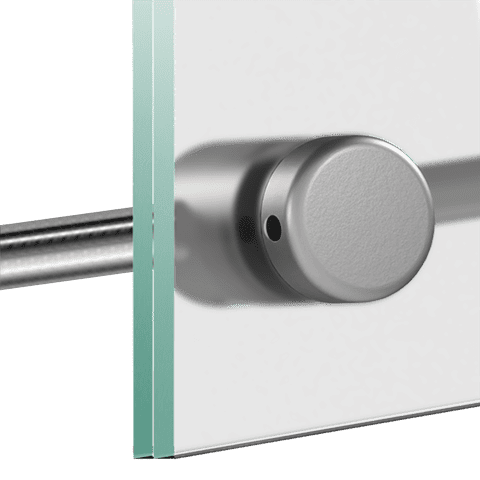

Standard Panel & Shelf Supports

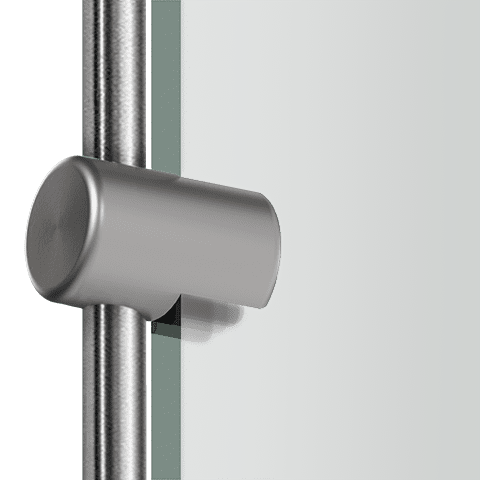

RG01-10 rod vertical support single sided for panels


up to 7mm (1/4″)

RG02-10 rod vertical support double sided for panels


up to 7mm (1/4″)

RG14-10 rod vertical support single-sided for panels


up to 12.5mm (1/2″)

RG06-10 rod shelf support single sided


up to 7mm (1/4″)

RG07-10 rod shelf support double sided


up to 7mm (1/4″)

RG15-10 rod shelf support single sided


up to 12.5mm (1/2″)

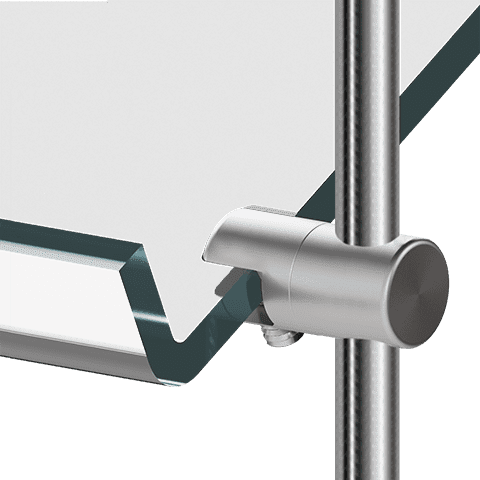

Multi-Position Panel/Shelf and Rod Supports

Adjustable to any angle. Can be locked into position.
RG11-10 rod multi-position support for panels and shelves


up to 7mm (1/4″)

RG21-10 rod multi-position support for panels and shelves


up to 7mm (1/4″)

RG13-10 rod multi-position support for panels and shelves


up to 10mm (3/8″)

RG23-10 rod multi-position support for panels and shelves


up to 10mm (3/8″)

RS11-10 rod multi-position support for panels and shelves mounted with screw


up to 25mm (1″)

RS21-10 rod multi position support vertical


up to 25mm (1″)

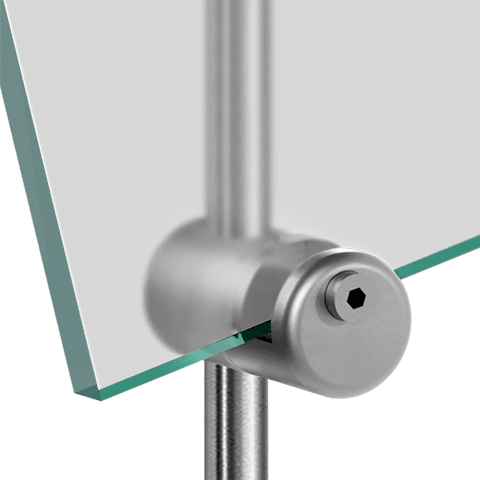

RG12-10 rod top-bottom multi-position support for panels


up to 7mm (1/4″)

RG22-10 rod top-bottom multi-position support for panels


up to 7mm (1/4″)

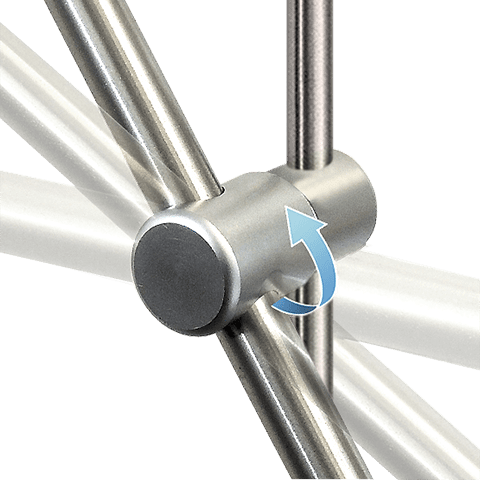

RR01-10 multi-position for 10mm rod


Rod Dia. 10mm (3/8″)

RR01-10-6 multi-position for 6mm rods


Rod Dia. 6mm (15/64″)

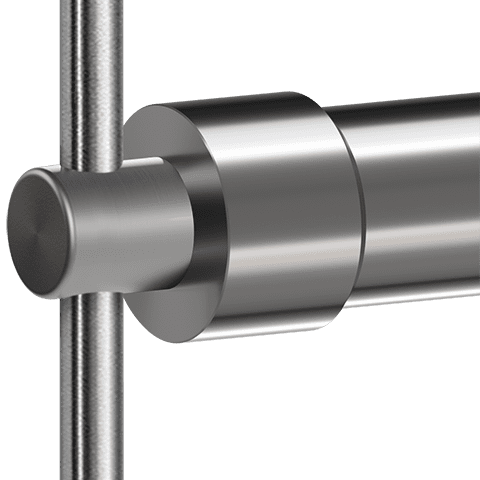

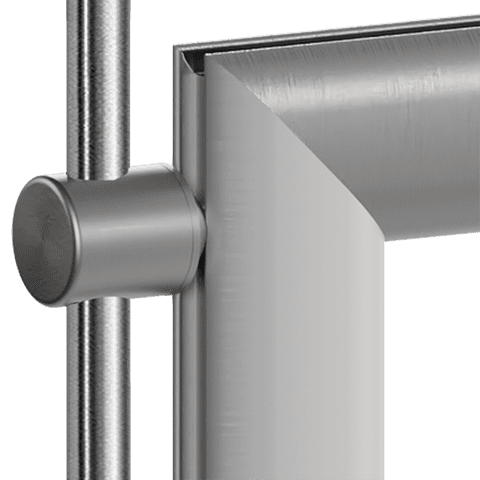

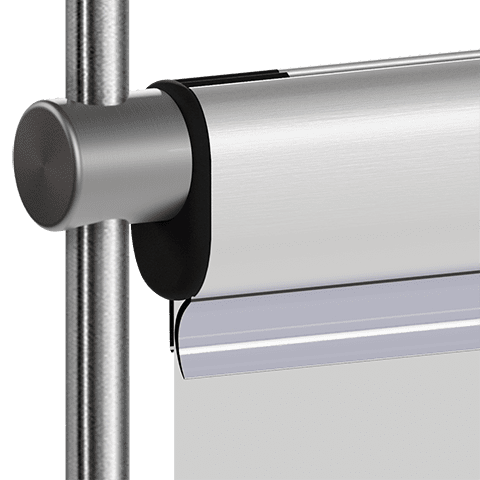

Specialty Supports

Use for mounting panels with holes, horizontal rods, picture frames or any item fitted with P02 boss.
RS03-10 rod support single for P02


any item w/P02 boss

RS04-10 rod support double single


any item w/P02 boss

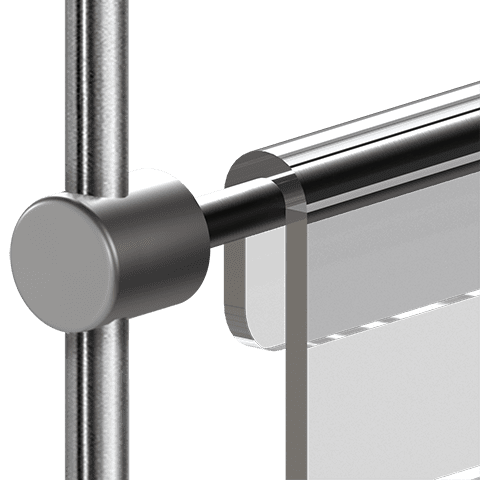

RS05-10 rod support single for 6mm rods


rod dia. 6mm (15/64″)

RS06-10 rod support double for 6mm rods


rod dia. 6mm (15/64″)

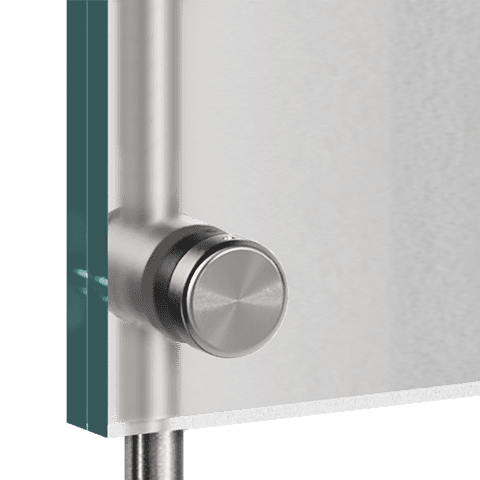

RS13-10 rod support for panels with holes


rod dia. 7mm (1/4″)

RS23-10 rod support for panels


rod dia. 7mm (1/4″)

RS13-10-S rod support for panels with holes


up to 12.5mm (1/2″)

RS23-10-S rod support double for panels with holes


up to 12.5mm (1/2″)

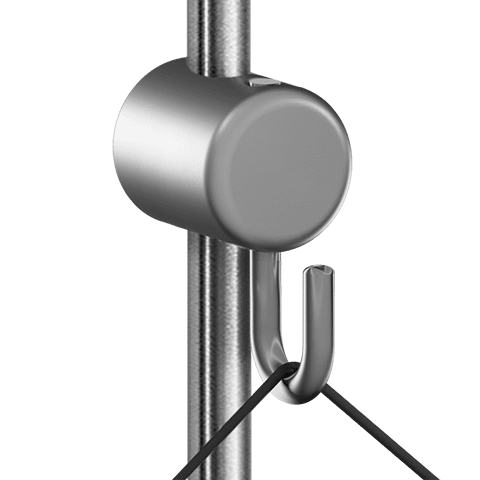

RS12-10 picture hook for 10mm rods


any hanging item

Display Solutions & Ideas

Cable Suspended LED Light Pockets - Illuminated Posters

LED Light Pockets

– incredibly bright, slim acrylic poster frame with glowing edges. It will make your window or wall displays stand out.

Rod Suspended Easy-Access Acrylic Poster Displays

Easy Access Poster Displays

– cable suspended poster information displays for walls and windows. Provide a quick and easy way to change information.

Rod Suspended Info/Poster Displays with Acrylic Angled Shelves

Literature/Information Displays

– cable/rod suspended or wall mounted displays for brochures, catalogs, magazines and other promotional materials.

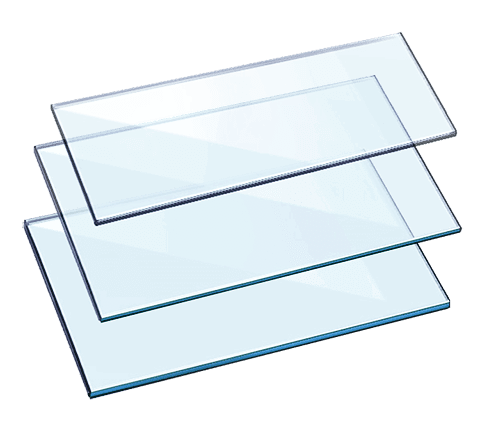

Cable/Rod Suspended Glass Shelves
