Tamper Proof / Stainless Steel Standoffs — M8/M10 Studs
Quality and inexpensive stainless steel standoffs with a tamper-proof security feature. The locking set screw on the base of the spacer provides an excellent way to secure the front caps, therefore locking the panel in place. These standoffs are machined using stainless steel #SS201 with a satin brushed finish and are ideal for mounting indoor display panels and signage. They are available in 12mm (1/2″), 16mm (5/8”), 19mm (3/4″) and 25mm (1″) diameters.
WSS1219/TP
Stainless Steel
Tamper Proof
Standoff Support
12mm (1/2″) Dia.
x 20mm (3/4″)
Length
M8 Stud
Tamper Proof
Standoff Support
12mm (1/2″) Dia.
x 20mm (3/4″)
Length
M8 Stud
WSS1619/TP
Stainless Steel
Tamper Proof
Standoff Support
16mm (5/8″) Dia.
x 20mm (3/4″)
Length
M10 Stud
Tamper Proof
Standoff Support
16mm (5/8″) Dia.
x 20mm (3/4″)
Length
M10 Stud
WSS1919/TP
Stainless Steel
Tamper Proof
Standoff Support
19mm (3/4″) Dia.
x 19mm (3/4″)
Length
M10 Stud
Tamper Proof
Standoff Support
19mm (3/4″) Dia.
x 19mm (3/4″)
Length
M10 Stud
WSS2525/TP
Stainless Steel
Tamper Proof
Standoff Support
25mm (1″) Dia.
x 25mm (1″)
Length
M10 Stud
Tamper Proof
Standoff Support
25mm (1″) Dia.
x 25mm (1″)
Length
M10 Stud
PWS-12
Replacement
Vinyl Washer
Set
for 12mm (1/2″) Dia.
M8 Standoffs
Vinyl Washer
Set
for 12mm (1/2″) Dia.
M8 Standoffs
PWS-16
Replacement
Vinyl Washer
Set
for 16mm (5/8″) Dia.
M10 Standoffs
Vinyl Washer
Set
for 16mm (5/8″) Dia.
M10 Standoffs
PWS-19
Replacement
Vinyl Washer
Set
for 19mm (3/4″) Dia.
M10 Standoffs
Vinyl Washer
Set
for 19mm (3/4″) Dia.
M10 Standoffs
PWS-25
Replacement
Vinyl Washer
Set
for 25mm (1″) Dia.
M10 Standoffs
Vinyl Washer
Set
for 25mm (1″) Dia.
M10 Standoffs
P50-TWL
50 lb
Twist-N-Lock
Anchor
Drywall Anchor
and Phillip Head Screw
Twist-N-Lock
Anchor
Drywall Anchor
and Phillip Head Screw
P75-TWL
75 lb
Twist-N-Lock
Anchor
Drywall Anchor
and Phillip Head Screw
Twist-N-Lock
Anchor
Drywall Anchor
and Phillip Head Screw
Note: These wall mounted standoffs are made of solid stainless steel #SS201 and are supplied in satin brushed finish as standard. Polished stainless steel or satin black finish are also available. Each standoff support is supplied with a set of protective clear vinyl washers. Recommended for supporting tempered glass, acrylic or similar substrates and require drilling. Not recommended for outdoor use.
Tamper Proof / Brass Standoffs — M8/M10 Studs
Heavy-duty constructed sign and panel standoffs with a tamper-proof security feature. These items provide fast, safe and easy installation just like our regular through standoffs. The locking set screw on the base of the spacer provides an excellent way to secure the front caps, therefore locking the panel in place. These standoffs are ideal for mounting glass shelves, counter-tops, display panels, decor screens, signs, and logo panels. Machined using only high-grade brass with satin chrome finish. They are available in 12.5mm (1/2″), 20mm (3/4″) and 25mm (1″) diameters with barrel length of 25mm (1″).
WSO1225/TP
Satin Chrome
Tamper Proof
Standoff Support
12mm (1/2″) Dia.
x 25mm (1″)
Length
M8 Stud
Tamper Proof
Standoff Support
12mm (1/2″) Dia.
x 25mm (1″)
Length
M8 Stud
WSO2025/TP
Satin Chrome
Tamper Proof
Standoff Support
20mm (3/4″) Dia.
x 25mm (1″)
Length
M10 Stud
Tamper Proof
Standoff Support
20mm (3/4″) Dia.
x 25mm (1″)
Length
M10 Stud
WSO2525/TP
Satin Chrome
Tamper Proof
Standoff Support
25mm (1″) Dia.
x 25mm (1″)
Length
M10 Stud
Tamper Proof
Standoff Support
25mm (1″) Dia.
x 25mm (1″)
Length
M10 Stud
WS-SPACER
Satin Chrome
Back-Side Mount
Standoff Support
25mm (1″) Dia.
x 20mm (3/4″)
Length
No Stud-Cap
Back-Side Mount
Standoff Support
25mm (1″) Dia.
x 20mm (3/4″)
Length
No Stud-Cap
SC-12 SC
Replacement
Screw-Cap with
Longer Stud
12mm (1/2″) Diameter
Screw-Cap with
Longer Stud
12mm (1/2″) Diameter
SC-20 SC
Replacement
Screw-Cap with
Longer Stud
20mm (3/4″) Diameter
Screw-Cap with
Longer Stud
20mm (3/4″) Diameter
PCW-20
Standoff Support
Joiner
Panel Spacer
for 20mm (3/4″) Dia.
Brass Standoffs
with M10 Studs
Joiner
Panel Spacer
for 20mm (3/4″) Dia.
Brass Standoffs
with M10 Studs
PCW-25
Standoff Support
Joiner
Panel Spacer
for 25mm (1″) Dia.
Brass Standoffs
with M10 Studs
Joiner
Panel Spacer
for 25mm (1″) Dia.
Brass Standoffs
with M10 Studs
PWS-19
Replacement
Vinyl Washer
Set
for 19mm (3/4″) Dia.
M10 Standoffs
Vinyl Washer
Set
for 19mm (3/4″) Dia.
M10 Standoffs
PWS-25
Replacement
Vinyl Washer
Set
for 25mm (1″) Dia.
M10 Standoffs
Vinyl Washer
Set
for 25mm (1″) Dia.
M10 Standoffs
Note: These wall mounted standoffs are made of solid brass and come as a three-part fitting with a standoff spacer/barrel, a wall plug, and a front screw-cap with M8/M10 stud. They are supplied in satin chrome finish as standard. Each standoff support is supplied with a set of protective clear vinyl washers.
Sign/Panel Support Systems / Range of Accessories
The modular sign/panel standoff support system includes a variety of accessories such as screw-caps with longer studs, four way connecting hubs/spacers, standoff joiner, dual-grip standoff supports, desktop standoff supports, projecting panel clamp, and edge-grip supports. Ideal for applications that require interchangeable flexibility.

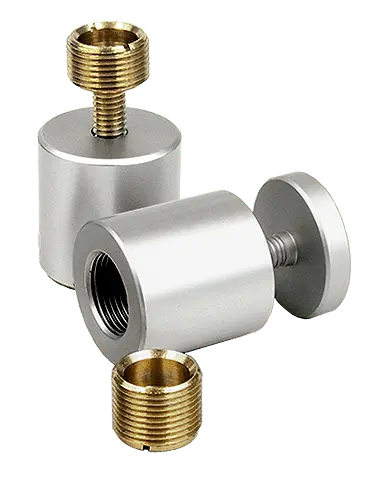

Standoff Joiner/
Panel Spacer for
Longer Supports

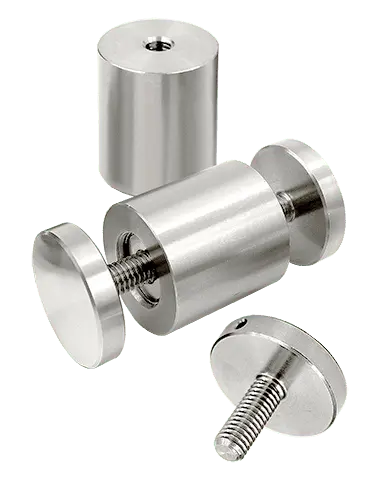

Dual-Grip
Sign Standoff
Support

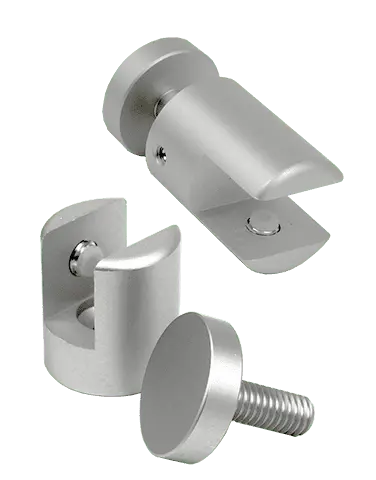

Standoff Gripper
Support/
Screw Cap Set

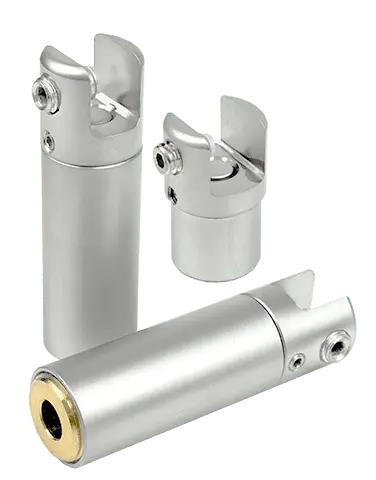

Wall-Standoff
Panel Clamp
Long Projection

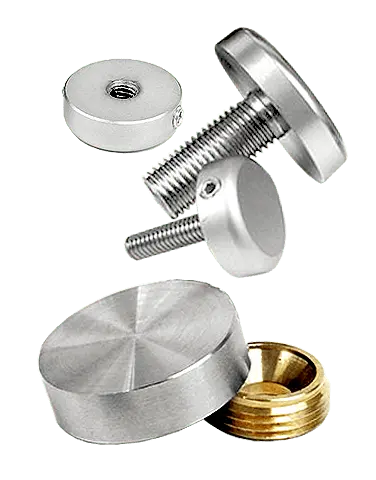

Decorative
Cover Caps and
Screw Stud-Caps

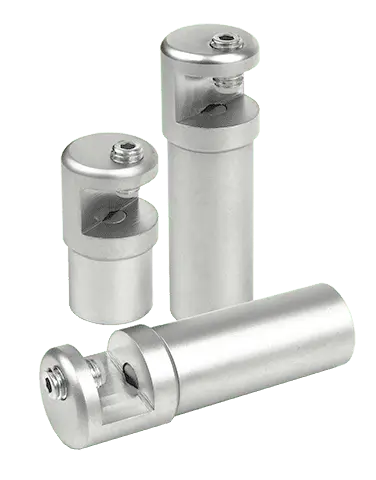

Edge-Grip
Standoff
Long Projection

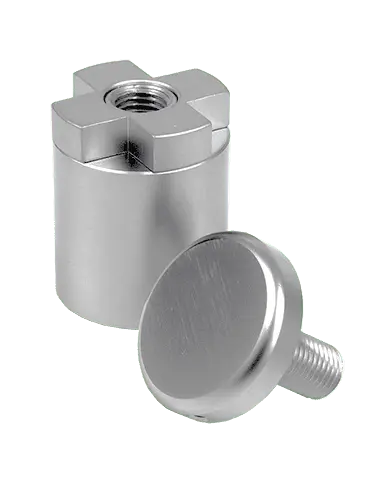

Four Way Hub/
Spacer
Butted Panels

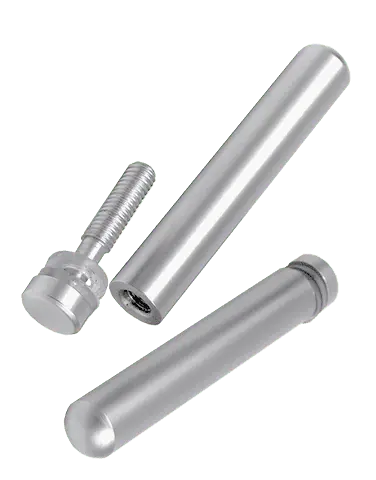

Desktop
Standoff
Supports
Specialized Accessories and Components

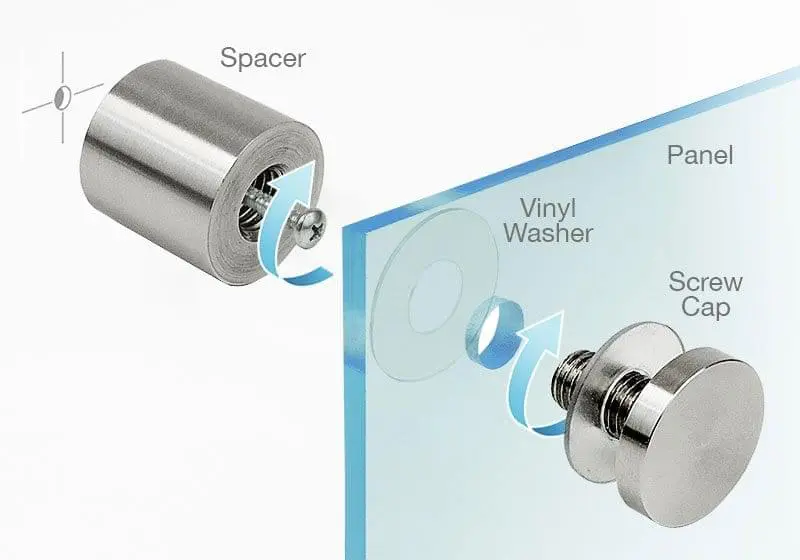

All our economy standoff supports are supplied as a two-part fitting with a standoff spacer/barrel and a front screw-cap. The screw caps/studs included with the standoff-set come with M8 or M10 threads and vary per standoff diameter, style, and type of material used in machining.
COMPATIBLE ITEMS: WSS1625-M10, WSS1919-M10, WSS2525-M10, WSE2020-M10, WSE2525-M10.
Specialty Standoffs for Sensitive Environments
For outdoor use in high-humidity marine or other special environments we provide quality standoff supports made of #SS304 or #SS316 stainless steel with a higher corrosion resistance. A variety of sizes and finishes are available in stock, custom sizes can be made to order.
COMPATIBLE ITEMS: WSS1619/EX-M10, WSS1625/EX-M10, WSS2519/EX-M10, WSS2525/EX-M10.

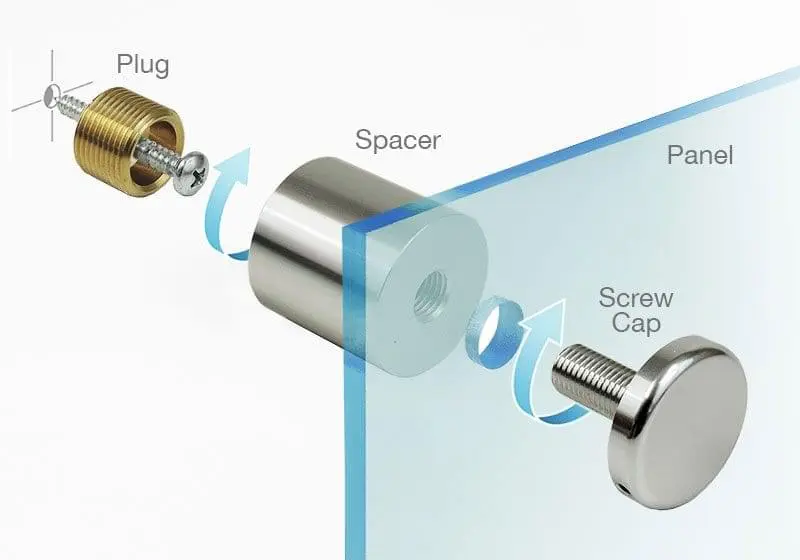

Most of our modular sign supports are supplied as a three-part fitting with a standoff spacer/barrel, a wall anchor, and a front screw-cap. The screw caps/studs included with the standoff-set come with M4, M6, or M8 threads and vary per standoff diameter, style, and type of material used in machining.
COMPATIBLE ITEMS: WSO1620-M8, WSO1625-M8, WSO2020-M8, WSO2525-M8, WSO2550-M8.
