Floor Display Stands for Large Graphic Inserts
Our range of standard floor-standing display frames offers a diverse selection of configurations and sizes, emphasizing their modularity, mobility, and adaptability for dynamic display needs. These versatile frames are specifically engineered for easy modifications and updates, catering to evolving content requirements. Not only are they practical and cost-effective, but they also serve multiple purposes, providing a convenient solution for various display needs while being effortless to set up and disassemble. A standout feature of our modular floor stands is their exceptional flexibility; they can function as standalone units or be interconnected to form expansive wall sections.
The premium aluminum framing of our display systems is designed to accommodate a wide array of substrates and accessories, including cable-suspended acrylic poster holders, brochure holders, logo/info panels, and large graphic displays. This adaptability ensures that our display frames can seamlessly integrate diverse elements to meet specific display objectives. Additionally, our commitment to comprehensive design support enables us to offer tailored customization for an extensive range of modular displays, encompassing freestanding setups as well as configurations for wall perimeters. This comprehensive approach ensures that our clients receive not only high-quality display solutions but also personalized design assistance to achieve their unique display goals effectively.
The premium aluminum framing of our display systems is designed to accommodate a wide array of substrates and accessories, including cable-suspended acrylic poster holders, brochure holders, logo/info panels, and large graphic displays. This adaptability ensures that our display frames can seamlessly integrate diverse elements to meet specific display objectives. Additionally, our commitment to comprehensive design support enables us to offer tailored customization for an extensive range of modular displays, encompassing freestanding setups as well as configurations for wall perimeters. This comprehensive approach ensures that our clients receive not only high-quality display solutions but also personalized design assistance to achieve their unique display goals effectively.
Our modular floor-standing display frames offer a host of benefits and advantages, including:
- Customizability and Adaptability — Floor-standing display frames are highly customizable, adaptable, and easily modified to create diverse design configurations tailored to specific needs.
- Design Versatility and Functionality — The flexibility of modular displays allows seamless adaptation to various settings, making them a versatile choice for a wide range of display applications.
- Ease of Integration and Assembly — These display frames are simple to assemble, dismantle, and maintain, enabling effortless adjustments by adding, removing, or replacing individual sections or components.
- Reliability and Sustainability — Floor-standing display frames can be disassembled for storage and reused for future projects, promoting sustainability through their reusability and long-lasting nature.
- Longevity — Crafted from high-grade materials, modular displays ensure product quality and durability, guaranteeing long-term performance.
- Portability — The ease of movement and reassembly of modular displays facilitates transportation and adaptation to new environments, enhancing their practicality.
- Affordability — The cost-saving potential of modular displays, with their ability to transform into new structures and meet evolving needs, makes them a cost-effective choice for diverse display applications.

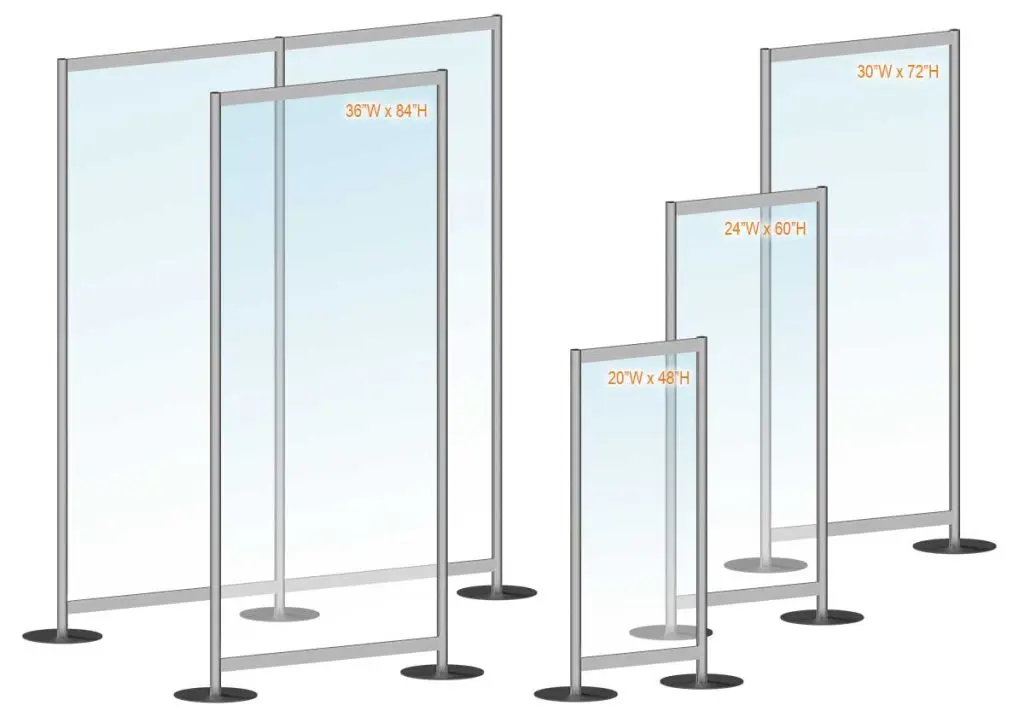

MR Series Floor-Standing Displays — Medium-Duty Frames
The MR Series Floor-Standing Displays offer medium-duty framing solutions for large format graphic panels. These fully modular, portable, and customizable floor display stands are designed for easy setups, quick take-downs, and effortless transporting. Sold as frames only without graphic substrates, they are available as stand-alone units or joined multi-sectional configurations. Capable of accommodating rigid or semi-rigid substrates up to 8.5mm (5⁄16″) in thickness, the frames feature channel openings on vertical and horizontal profiles for direct fitting of graphic panels. Horizontal profiles (connecting cross-bars) come with pre-installed connectors that securely lock into the uprights, creating a durable frame system. Standard components are crafted from clear anodized aluminum for a sleek appearance suitable for diverse environments like retail outlets, banks, museums, exhibitions, airports, offices, and showrooms. Customizable options include selecting display frame height and width to meet specific requirements.
Specifications and Components
- Standard Uprights — The round upright profiles for floor standing displays are available in 38mm (1-1/4″) diameter with channel openings on one side, two sides (at 90°), two sides (at 180°), three sides, and four sides. Uprights come in heights of 48″, 60″, 72″, and 84″ and are pre-drilled for insert-block attachment.
- Connecting Cross-Bars — Horizontal connecting profiles are offered in 19mm (3/4″) x 35mm (1-3/8″) and 19mm (3/4″) x 45mm (1-13/16″) sections with connectors for adjustable height locking into vertical uprights. Width options include 14″, 16″, 18″, 21″, 24″, 36″, 42″, and 48″.
- Floor Bases — Standard 12″ round diameter bases feature an 8mm (5/16″) center hole for insert-block attachment. Made of steel with a silver vein powder coat finish, each base weighs approximately 6 lbs.
- Add-Ons — Customization options include headers and info/logo panels using additional horizontal cross-bars to split the frame. Additional sections can be added for extending the display area in straight, zig-zag, or enclosed box-style configurations.
- Compatibility and Adaptability — Designed to accommodate substrates up to 8.5mm (5⁄16″) thick, these stands work well with popular materials like 6mm (1/4″) PVC panels. Accessories like gasket inserts or panel holders can enhance stand functionality.
- Custom Size Frames — Stands can be tailored to specific requirements with frame sizes available up to 48″ x 84″.
Most Popular Frame Sizes
Item Code | Stand Size | Insert Width | Insert Height | Stand Width |
---|---|---|---|---|
KFMR-18x60 | 18”W x 60”H | 18-1/2” | 56” | 31” |
KFMR-18x72 | 18”W x 72”H | 18-1/2” | 68” | 31” |
KFMR-24x72 | 24”W x 72”H | 24-1/2” | 68” | 37” |
KFMR-24x84 | 24”W x 84”H | 24-1/2” | 80” | 37” |
KFMR-36x72 | 36”W x 72”H | 36-1/2” | 68” | 49” |
KFMR-36x84 | 36”W x 84”H | 36-1/2” | 80” | 49” |
KFMR-48x72 | 48”W x 72”H | 48-1/2” | 68” | 61” |
KFMR-48x84 | 48”W x 84”H | 48-1/2” | 80” | 61” |
IMPORTANT NOTE: Each stand is equipped with two 12″ diameter floor bases made of steel to provide stability and prevent tipping. These floor stands can be used as single units, joined multi-sections, or in groups, offering versatile display options for various settings.
Vertical/Horizontal Profile — Uprights and Connecting Cross-Bars
Upright / Post
Channel on One-Side
Channel on One-Side
MR1200
Upright / Post
Channel on Two-Sides (90°)
Channel on Two-Sides (90°)
MR1220
Upright / Post
Channel on Two-Sides (180°)
Channel on Two-Sides (180°)
MR1300
Upright / Post
Channel on Three-Sides
Channel on Three-Sides
MR1400
Upright / Post
Channel on Four-Sides
Channel on Four-Sides
PH1035
Cross-Bar
with CBX42 Connectors
with CBX42 Connectors
PH1045
Cross-Bar
with CBX42 Connectors
with CBX42 Connectors
PH1005
Cross-Bar
with CBX42 Connectors
with CBX42 Connectors
Accessories — End Caps, Inserts and Floor Bases

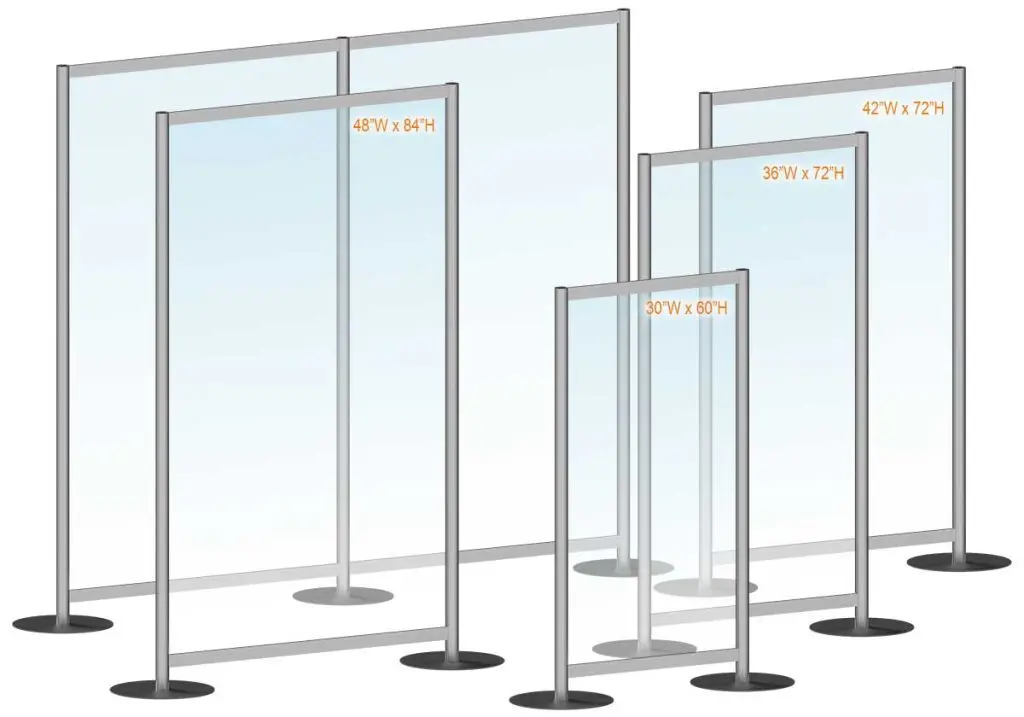

TR Series Floor-Standing Displays — Heavy-Duty Frames
The TR Series Floor-Standing Displays are engineered for heavy-duty support of large format graphic panels, emphasizing their modularity. These stands are robust, yet designed for simplicity in assembly and disassembly, ensuring they can be easily set up, taken down, and transported. Available as frame-only units, they offer the flexibility to be used as stand-alone displays or connected together in multi-sectional configurations. This modularity extends to the accommodation of various substrate thicknesses up to 8.5mm (5⁄16″), with frames designed for the direct insertion of graphic panels into the channel openings of both vertical and horizontal profiles. The integration of pre-installed connectors on horizontal profiles ensures a secure and stable assembly. Crafted from clear anodized aluminum, the sleek design of these components makes them suitable for a wide range of settings, from retail to educational and professional environments. Additionally, their modular nature allows for customization in height and width, tailoring to specific display needs and making them versatile for use as partitions, room dividers, or standalone exhibit stands.
Specifications and Components
- Standard Uprights — The round upright profiles for floor standing displays are available in 48mm (1-7/8″) diameter with channel openings on one side, two sides (at 90°), two sides (at 180°), three sides, and four sides. Uprights come in heights of 48″, 60″, 72″, and 84″ and are pre-drilled for insert-block attachment.
- Connecting Cross-Bars — Horizontal connecting profiles are offered in 19mm (3/4″) x 45mm (1-13/16″) and 19mm (3/4″) x 70mm (2-3/4″) sections with connectors for adjustable height locking into vertical uprights. Width options include 20″, 24″, 30″, 36″, 42″, 48″, and 60″.
- Floor Bases — Standard 15″ round diameter bases feature an 8mm (5/16″) center hole for insert-block attachment. Made of steel with a silver vein powder coat finish, each base weighs approximately 9 lbs.
- Add-Ons — Customization options include headers and info/logo panels using additional horizontal cross-bars to split the frame. Additional sections can be added for extending the display area in straight, zig-zag, or enclosed box-style configurations.
- Compatibility and Adaptability — Designed to accommodate substrates up to 8.5mm (5⁄16″) thick, these stands work well with popular materials like 6mm (1/4″) PVC panels. Accessories like gasket inserts or panel holders can enhance stand functionality.
- Custom Size Frames — Stands can be tailored to specific requirements with frame sizes available up to 60″ x 96″.
Most Popular Frame Sizes
Item Code | Stand Size | Insert Width | Insert Height | Stand Width |
---|---|---|---|---|
KFTR-24x72 | 24”W x 72”H | 24-1/2” | 68” | 41” |
KFTR-24x84 | 24”W x 84”H | 24-1/2” | 80” | 41” |
KFTR-30x72 | 30”W x 72”H | 30-1/2” | 68” | 47” |
KFTR-30x84 | 30”W x 84”H | 30-1/2” | 80” | 47” |
KFTR-36x72 | 36”W x 72”H | 36-1/2” | 68” | 53” |
KFTR-36x84 | 36”W x 84”H | 36-1/2” | 80” | 53” |
KFTR-48x72 | 48”W x 72”H | 48-1/2” | 68” | 65” |
KFTR-48x84 | 48”W x 84”H | 48-1/2” | 80” | 65” |
IMPORTANT NOTE: Each stand is equipped with two 15″ diameter floor bases made of steel to provide stability and prevent tipping. These floor stands can be used as single units, joined multi-sections, or in groups, offering versatile display options for various settings.
Vertical/Horizontal Profile — Uprights and Connecting Cross-Bars
TR1100
Upright / Post
Channel on One-Side
Channel on One-Side
TR1200
Upright / Post
Channel on Two-Sides (90°)
Channel on Two-Sides (90°)
TR1220
Upright / Post
Channel on Two-Sides (180°)
Channel on Two-Sides (180°)
TR1300
Upright / Post
Channel on Three-Sides
Channel on Three-Sides
TR1400
Upright / Post
Channel on Four-Sides
Channel on Four-Sides
PH1045
Cross-Bar
with CBX42 Connectors
with CBX42 Connectors
PH1005
Cross-Bar
with CBX42 Connectors
with CBX42 Connectors
PH1003B
Cross-Bar
with CBX42 Connectors
with CBX42 Connectors
Accessories — End Caps, Inserts and Floor Bases
Optional Cable Systems with Acrylic Accessories
Our modular floor-standing displays offer structural simplicity, allowing large graphic panels to be inserted directly into stand slots. These stands are also compatible with cable systems for suspended acrylic holders, literature holders, and signage. Accessories can be attached to the frame or aluminum profiles at adjustable heights, with vertical cables inside the frame adjusting sideways for wider inserts. Cable support clips slide vertically and lock in place for added flexibility. Our standard 1.5mm cable suspension kits include pre-crimped cables, fixings, and tensioners, with customizable rail toggles. Each kit features 4-meter cables that can be shortened during installation. Various fittings and accessories are available for customization:
CQQ
Track-Mount
w/Quick Fit Toggle
4M (13’ 1-1/2”)
Length
w/Quick Fit Toggle
4M (13’ 1-1/2”)
Length
CA4
Ceiling-
to-Floor
4M (13’ 1-1/2”)
Length
to-Floor
4M (13’ 1-1/2”)
Length
C101-4M
Ceiling-
to-Floor
4M (13’ 1-1/2”)
Length
to-Floor
4M (13’ 1-1/2”)
Length
PA8
Toggle
End-Fit
for Cable-to-Rail
Attachment
End-Fit
for Cable-to-Rail
Attachment
CG03
Side Support
Single
up to 4mm (5/32″)
Single
up to 4mm (5/32″)
CG04
Side Support
Double
up to 4mm (5/32″)
Double
up to 4mm (5/32″)
CG01
Side Support
Single
up to 7mm (1/4″)
Single
up to 7mm (1/4″)
CG02
Side Support
Double
up to 7mm (1/4″)
Double
up to 7mm (1/4″)
CG09
Top/Bottom
Support
up to 7mm (1/4″)
Support
up to 7mm (1/4″)
CG14
Side Support
Single
up to 12.5mm (1/2″)
Single
up to 12.5mm (1/2″)
EAAP
Acrylic Poster Holders
Clear/Non-Glare
Clear/Non-Glare
ALD
Acrylic Literature
Holders
Clear
Clear
HOW TO ORDER:
- Request Customization — If you have a special request or require help with custom design, components specification, and fabrication, please use our Inquiry/Quote Request Form to contact us.
- Please send us a project scope statement or detailed description with expected time-line. Include a graphical attachment (sketch/layout) with dimensions.
- Revision of your layouts and preparation of an estimate may require 1-3 business days depending on the intricacy of your project.
- All estimates are provided in an itemized format to include list pricing for individual components, custom items, packaging, shipping costs, and other related expenses.
- Estimates are delivered to you via email in written form only; verbal estimates are not provided.
