The Easy Access Acrylic Info/Poster Holders, are designed as 1/8 inch thick clear acrylic folded style frames with side tabs. Acrylic holders are available in portrait or landscape orientations and in a range of sizes. You may order standard pre-configured display kits or create your own custom display configuration by selecting the frame size that will fit your poster/print insert. Choose from ceiling-to-floor or wall-to-wall cable suspension kits with appropriate panel supports such as single or double, or use edge-grip supports for mounting the holders directly to wall.

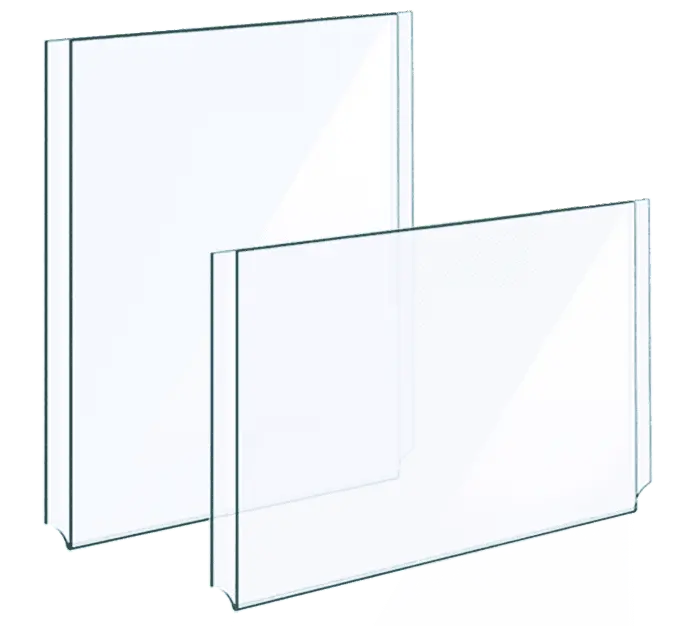

Easy Access Acrylic Holders — Classic Style / (Frame Only)
1/8 inch thick clear acrylic pocket/envelope style frames — available in portrait or landscape orientation and in a range of sizes to hold letter, legal, or other standard poster-insert formats. The tabs on each side of the holder enable for cable/rod display fittings or edge-grip supports to attach for mounting purpose. Use as single or double-sided poster frame. Works with standard posters or prints up to 135 gsm or 1mm (1/32”) thick.
| Item Code | Insert Size | Orientation | Cable Centers | Rod Centers | Finish |
|---|---|---|---|---|---|
| 18EAAP-8511P | 8.5"W x 11"H | Portrait | 9-7/8” | 10” | Clear/Non-Glare |
| 18EAAP-8511L | 11"W x 8.5"H | Landscape | 12-3/8” | 12-1/2” | Clear/Non-Glare |
| 18EAAP-1114P | 11"W x 14"H | Portrait | 12-3/8” | 12-1/2” | Clear/Non-Glare |
| 18EAAP-1114L | 14"W x 11"H | Landscape | 15-3/8” | 15-1/2” | Clear/Non-Glare |
| 18EAAP-1117P | 11"W x 17"H | Portrait | 12-3/8” | 12-1/2” | Clear/Non-Glare |
| 18EAAP-1117L | 17"W x 11"H | Landscape | 18-3/8” | 18-1/2” | Clear/Non-Glare |
| 18EAAP-1422P | 14"W x 22"H | Portrait | 15-3/8” | 15-1/2” | Clear/Non-Glare |
| 18EAAP-1422L | 22"W x 14"H | Landscape | 23-3/8” | 23-1/2” | Clear/Non-Glare |
| 18EAAP-1620P | 16"W x 20"H | Portrait | 17-3/8” | 17-1/2” | Clear/Non-Glare |
| 18EAAP-1620L | 20"W x 16"H | Landscape | 21-3/8” | 21-1/2” | Clear/Non-Glare |
| 18EAAP-1824P | 18"W x 24"H | Portrait | 19-3/8” | 19-1/2” | Clear/Non-Glare |
| 18EAAP-1824L | 24"W x 18"H | Landscape | 25-3/8” | 25-1/2” | Clear/Non-Glare |
| 18EAAP-2228P | 22"W x 28"H | Portrait | 23-3/8” | 23-1/2” | Clear/Non-Glare |
| 18EAAP-2228L | 28"W x 22"H | Landscape | 29-3/8” | 29-1/2” | Clear/Non-Glare |
| 18EAAP-2436P | 24"W x 36"H | Portrait | 25-3/8” | 25-1/2” | Clear/Non-Glare |
| 18EAAP-2436L | 36"W x 24"H | Landscape | 37-3/8” | 37-1/2” | Clear/Non-Glare |
Note: Use with cable/rod suspension systems or wall edge-grip standoff supports. Suspend several acrylic poster holders on cables spaced at the same width, to be positioned side by side or one above the others. Standard holders come in “clear” acrylic. To order easy access holders in “non-glare” finish add /NG to standard item codes above (for example 18EAAP-1824P/NG). Customizations and extra-large format pockets are also available in clear impact resistant acrylic (Duraplex®) for durability. Cable/rod suspension and wall mounting hardware is sold separately — select from appropriate cable/rod or edge-grip standoff hardware following the links in the “Compatibility Table” below.

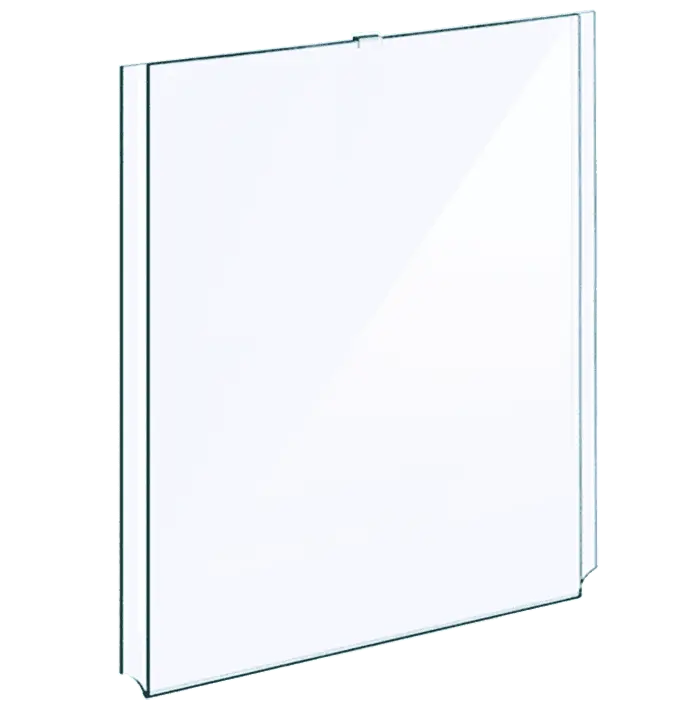

Easy Access Acrylic Holders — Oversize / (Frame Only)
1/8 inch thick clear acrylic pocket/envelope style frames — available in portrait or landscape orientation and in few sizes to hold oversized poster-insert formats. The tabs on each side of the holder enable for cable/rod display fittings to attach for mounting purpose. Use as single or double-sided poster frame. Works with standard posters or prints up to 135 gsm or 1mm (1/32”) thick.
| Item Code | Insert Size | Orientation | Cable Centers | Rod Centers | Finish |
|---|---|---|---|---|---|
| 18EAAP-3040P | 30"W x 40"H | Portrait | 31-3/8” | 31-1/2” | Clear/Non-Glare |
| 18EAAP-3040L | 40"W x 30"H | Landscape | 41-3/8” | 41-1/2” | Clear/Non-Glare |
| 18EAAP-3040P/DR | 30"W x 40"H | Portrait | 31-3/8” | 31-1/2” | Impact-Resistant/Duraplex |
| 18EAAP-3040L/DR | 40"W x 30"H | Landscape | 41-3/8” | 41-1/2” | Impact-Resistant/Duraplex |
| 18EAAP-3642P/DR | 36"W x 42"H | Portrait | 37-3/8” | 31-1/2” | Impact-Resistant/Duraplex |
| 18EAAP-3642L/DR | 42"W x 36"H | Landscape | 43-3/8” | 43-1/2” | Impact-Resistant/Duraplex |
| 18EAAP-3648P | 36"W x 48"H | Portrait | 37-3/8” | 37-1/2” | Impact-Resistant/Duraplex |
Note: Use with cable/rod display suspension systems. Standard holders come in “clear” acrylic. To order easy access holders in “non-glare” finish add /NG to standard item codes above (for example 18EAAP-3040P/NG). We recommend the use of clear impact resistant acrylic (Duraplex®) for durability and long life. Cable/rod display components are sold separately — select from appropriate cable/rod suspension hardware following the links in the “Compatibility Table” below.
Save time and money on Acrylic Poster Holders in Bundles — supplied with clear or non-glare (non-reflective) acrylic holders, cable suspension or wall standoff mounting hardware and prints if necessary. Use to display posters, graphics, or other interchangeable printed inserts in either portrait or landscape orientation. Provides a quick and easy way to change information. Available in following standard insert sizes 8.5” x 11“, 11” x 17”, 14” x 22”, 16” x 20”, 18” x 24”, 20” x 30”, 22” x 28”, 24” x 36”, and 30” x 40”. Other styles, sizes, and finishes are also available upon request…

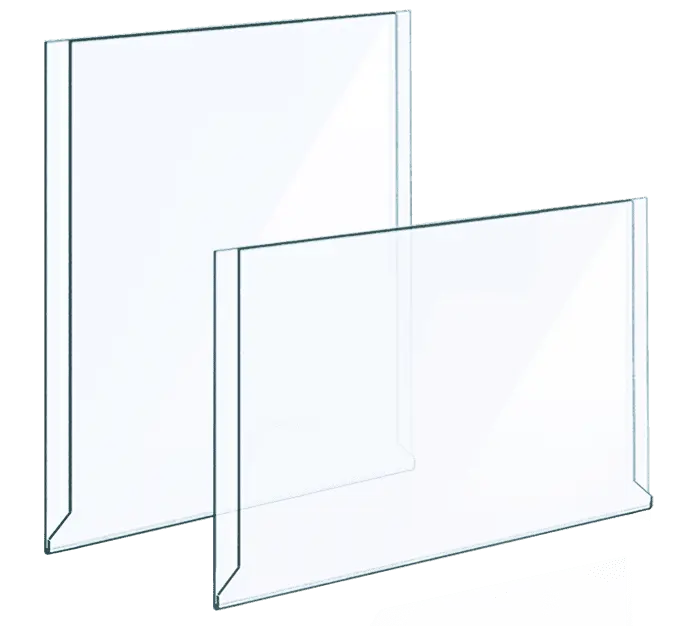

Easy Access Acrylic Holders — Expo Style / (Frame Only)
1/8 inch thick clear acrylic pocket/envelope style frames — available in portrait or landscape configuration and in a range of sizes to hold letter, legal, or other standard poster-insert formats. The tabs on each side of the holder enable for cable/rod display fittings or edge-grip supports to attach for mounting purpose. Use as single or double sided poster frame. Works with standard posters or prints up to 135 gsm or 1mm (1/32”) thick.
| Item Code | Insert Size | Orientation | Cable Centers | Rod Centers | Finish |
|---|---|---|---|---|---|
| 18AFF-8511P | 8.5"W x 11"H | Portrait | 9-7/8” | 10” | Clear/Non-Glare |
| 18AFF-8511L | 11"W x 8.5"H | Landscape | 12-3/8” | 12-1/2” | Clear/Non-Glare |
| 18AFF-1117P | 11"W x 17"H | Portrait | 12-3/8” | 12-1/2” | Clear/Non-Glare |
| 18AFF-1117L | 17"W x 11"H | Landscape | 15-3/8” | 15-1/2” | Clear/Non-Glare |
| 18AFF-1824P | 18"W x 24"H | Portrait | 19-3/8” | 19-1/2” | Clear/Non-Glare |
| 18AFF-1824L | 24"W x 18"H | Landscape | 25-3/8” | 25-1/2” | Clear/Non-Glare |
| 18AFF-2228P | 22"W x 28"H | Portrait | 23-3/8” | 23-1/2” | Clear/Non-Glare |
| 18AFF-2228L | 28"W x 22"H | Landscape | 29-3/8” | 29-1/2” | Clear/Non-Glare |
| 18AFF-2436P | 24"W x 36"H | Portrait | 25-3/8” | 25-1/2” | Clear/Non-Glare |
| 18AFF-2436L | 36"W x 24"H | Landscape | 37-3/8” | 37-1/2” | Clear/Non-Glare |
Note: Use with cable/rod suspension systems or wall edge-grip standoff supports. Suspend several acrylic poster holders on cables spaced at the same width, to be positioned side by side or one above the others. Cable/rod mounting hardware is sold separately. Standard holders come in “clear” acrylic. To order easy access holders in “non-glare” finish add /NG to standard item codes above (for example 18AFF-1824P/NG). Customizations and extra-large format pockets are also available in clear impact resistant acrylic (Duraplex®) for durability. Cable/rod suspension and wall mounting hardware is sold separately — select from appropriate cable/rod or edge-grip standoff hardware following the links in the “Compatibility Table” below.

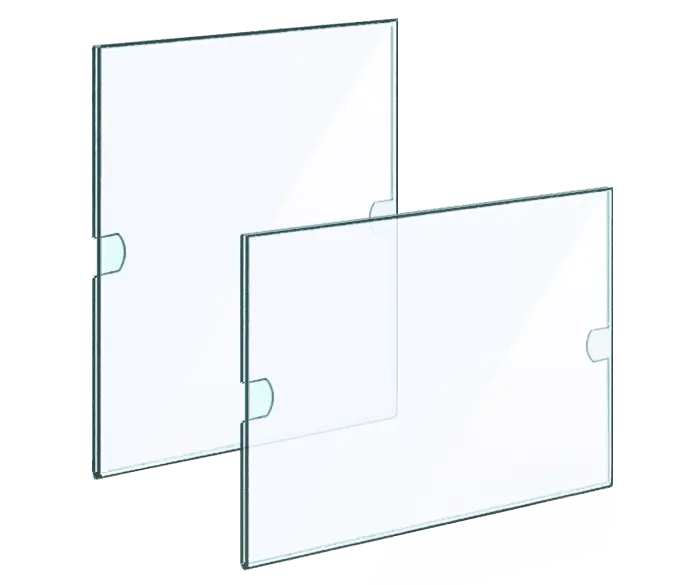

Easy Access Acrylic Holders — Deco Style / (Frame Only)
1/8 inch thick clear acrylic pocket/envelope style frames — available in portrait or landscape configuration and in smaller format sizes to hold standard photographs or letter size inserts. Frame is designed to be hung with a single cable/rod or edge-grip support fitting per side. Use as single or double sided poster frame. Works with standard posters or prints up to 135 gsm or 1mm (1/32”) thick. Available in clear and non-glare acrylic.
| Item Code | Insert Size | Orientation | Cable Centers | Rod Centers | Finish |
|---|---|---|---|---|---|
| 18APF-0507P | 5"W x 7"H | Portrait | 6-3/8” | 6-1/2” | Clear/Non-Glare |
| 18APF-0507L | 7"W x 5"H | Landscape | 8-3/8” | 8-1/2” | Clear/Non-Glare |
| 18APF-0810P | 8"W x 10"H | Portrait | 9-3/8” | 9-1/2” | Clear/Non-Glare |
| 18APF-0810L | 10"W x 8"H | Landscape | 11-3/8” | 11-1/2” | Clear/Non-Glare |
| 18APF-8511P | 8.5"W x 11"H | Portrait | 9-7/8” | 10” | Clear/Non-Glare |
| 18APF-8511L | 11"W x 8.5"H | Landscape | 12-3/8” | 12-1/2” | Clear/Non-Glare |
Note: Use with cable/rod suspension systems or wall edge-grip standoff supports. Cable/rod mounting hardware is sold separately. Standard holders come in “clear” acrylic. To order easy access holders in “non-glare” finish add /NG to standard item codes above (for example 18APF-8511P/NG). Custom sizes are available. Cable/rod suspension and wall mounting hardware is sold separately — select from appropriate cable/rod or edge-grip standoff hardware following the links in the “Compatibility Table” below.
Compatible Display Systems
Use sign/panel standoff supports with M4 stud-caps to mount the easy access info/poster holders with holes onto doors, walls, cubicles, and privacy screens.
Use edge-grip panel supports to mount the easy access info/poster holders onto doors, walls, cubicles, workstations, and privacy screens.

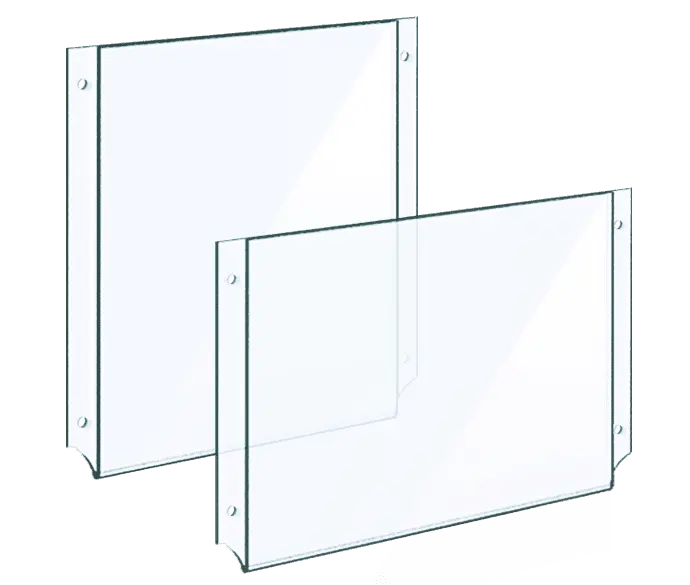

Easy Access Acrylic Holders — Wall Mount / (Frame Only)
1/8 inch thick clear acrylic pocket/envelope style frames with holes — available in portrait or landscape configuration and in a range of sizes to hold letter, legal, or other standard poster-insert formats. The pre-drilled tabs on each side of the holder enable for standoff supports to attach for mounting purpose. Works with standard posters or prints up to 135 gsm or 1mm (1/32”) thick. Available in clear and non-glare acrylic.
| Item Code | Insert Size | Orientation | Standoff Centers | Hole Size | Finish |
|---|---|---|---|---|---|
| 18EAAP-W-8511P | 8.5"W x 11"H | Portrait | 9-1/2” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-8511L | 11"W x 8.5"H | Landscape | 12” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-1114P | 11"W x 14"H | Portrait | 12” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-1114L | 14"W x 11"H | Landscape | 15” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-1117P | 11"W x 17"H | Portrait | 12” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-1114L | 17"W x 11"H | Landscape | 18” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-1824P | 18"W x 24"H | Portrait | 19-1/4” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-1824L | 24"W x 18"H | Landscape | 25-1/4” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-228P | 22"W x 28"H | Portrait | 23-1/4” | 5mm (3/16”) | Clear/Non-Glare |
| 18EAAP-W-2228L | 28"W x 22"H | Landscape | 29-1/4” | 5mm (3/16”) | Clear/Non-Glare |
Note: Use with sign/panel standoff supports with M4 studs. Standard holders come in “clear” acrylic. To order easy access holders in “non-glare” finish add /NG to standard item codes above (for example 18APF-W-8511P/NG). Custom sizes are available. Wall mounting hardware is sold separately — select from appropriate standoff hardware following the links in the “Compatibility Table” above.
We offer a diverse selection of standard display kits to streamline your display selection process. These cost-effective and elegant solutions are designed for showcasing posters or prints of various sizes. Our display solutions prioritize modularity and flexibility, allowing for easy reconfiguration or modification to accommodate changes or updates effortlessly…
Custom Acrylic Poster Holders
We specialize in custom work and welcome any of your design variations. Easy access acrylic pre-folded frames come in 1/8 inch thick clear acrylic as standard. Other finishes such as non-glare, UV filtering, impact-resistant, or marker-board type acrylics are also available upon request. For special orders under time constraints, we are uniquely capable of providing fast turnaround when necessary. Send your requirements and we will turn them into highly attractive working projects.
