Hook-on Acrylic Info/Poster Holders / Styles & Sizes
- Introduction
- Features and Benefits
- Cleaning and Handling
- Catalog Pages
- Specifications
- Installation Guides
- Online Store
- Product Bundles
- Wall Display Ideas
- Overstock Items
The Hook-on Acrylic Poster Holders are designed as 1/8 inch thick clear acrylic folded style frames with a special molded top that can hook onto the 6mm diameter rods. Rods can be mounted horizontally onto walls or suspended from cables. Order standard pre-configured display kits, or customize you own display configuration by selecting the frame size that fits the format of your poster/print, add the wall supports and rods with end caps if needed, or use cable suspension hardware to support the rods. Rods can be joined together for longer lengths or shortened in place during installation.

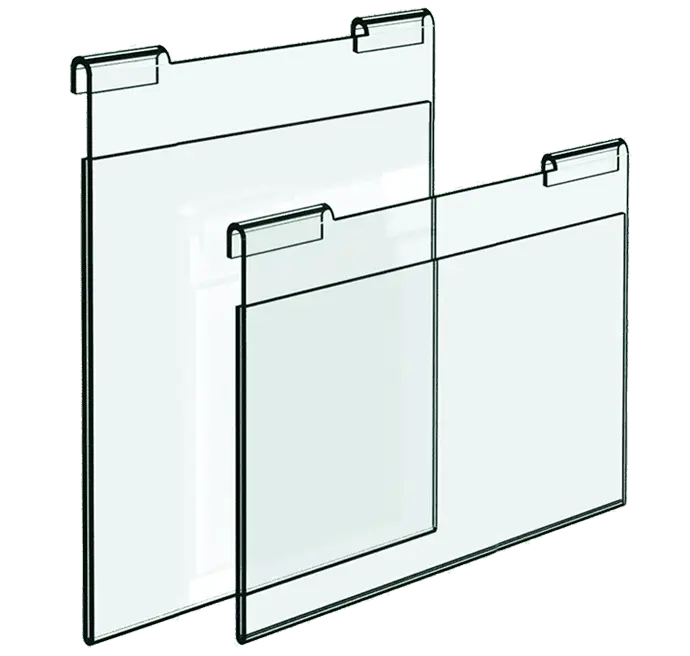

Hook-on Acrylic Holders — 6mm Rods / (Frame Only)
1/8 inch thick clear acrylic pocket/envelope style frames — available in portrait or landscape orientation and in few popular sizes to accommodate for photo, letter, legal, or other standard poster-insert formats. Holders have a special designed top that can hook onto the 6mm diameter rods. Works with standard posters or prints up to 135 gsm or 1mm (1/32”) thick.
Item Code | Insert Size | Orientation | Qty / Section | Finish |
---|---|---|---|---|
18HAP-0406P | 4"W x 6"H | Portrait | 4 | Clear/Non-Glare |
18HAP-0406L | 6"W x 4"H | Landscape | 3 | Clear/Non-Glare |
18HAP-0507P | 5"W x 7"H | Portrait | 3 | Clear/Non-Glare |
18HAP-0507L | 7"W x 5"H | Landscape | 2 | Clear/Non-Glare |
18HAP-0810P | 8"W x 10"H | Portrait | 2 | Clear/Non-Glare |
18HAP-0810L | 10"W x 8"H | Landscape | 2 | Clear/Non-Glare |
18HAP-8511P | 8.5"W x 11"H | Portrait | 2 | Clear/Non-Glare |
18HAP-8511L | 11"W x 8.5"H | Landscape | 1 | Clear/Non-Glare |
18HAP-1114P | 11"W x 14"H | Portrait | 1 | Clear/Non-Glare |
18HAP-1114L | 14"W x 11"H | Landscape | 1 | Clear/Non-Glare |
18HAP-1117P | 11"W x 17"H | Portrait | 1 | Clear/Non-Glare |
18HAP-1117L | 17"W x 11"H | Landscape | 1 | Clear/Non-Glare |
18HAP-1824P | 18"W x 24"H | Portrait | 1 | Clear/Non-Glare |
18HAP-1824L | 24"W x 18"H | Landscape | 1 | Clear/Non-Glare |
18HAP-2228P | 22"W x 28"H | Portrait | 1 | Clear/Non-Glare |
18HAP-2228L | 28"W x 22"H | Landscape | 1 | Clear/Non-Glare |
Note: Use with 6mm diameter horizontal rods. Rods are mounted to wall or suspended with cables in multiple rows at various heights and can display acrylic holders in both portrait or landscape orientations. Rods can only support a specific number of holders per each section (distance between two mounts) and the number depends on the holder size and weight. Standard holders come in “clear” acrylic. To order hook-on holders in “non-glare” finish add /NG to standard item codes above (for example 18HAP-8511P/NG). Custom sizes are available. Cable/rod components are sold separately — select from appropriate cable/rod wall mounting hardware following the links in the “Compatibility Table” below.
Save time and money on Acrylic Hook-on Poster Holders in Bundles — supplied with folded acrylic holders, rods, wall mounting hardware, and prints if necessary. Use to display information, posters, photographs, or other interchangeable printed inserts in either portrait or landscape orientation. Provides a quick and easy way to change information. Holders are available in crystal clear or non-glare (non-reflective) acrylic. Available in following insert sizes 4” x 6”, 5” x 7”, 8″ x 10″, 8.5″ x 11″, 11″ x 14″, and 11″ x 17″. Larger sizes such as 16” x 20”, 18″ x 24″, 20″ x 30″, 22″ x 28″, or custom sizes are also available upon request…

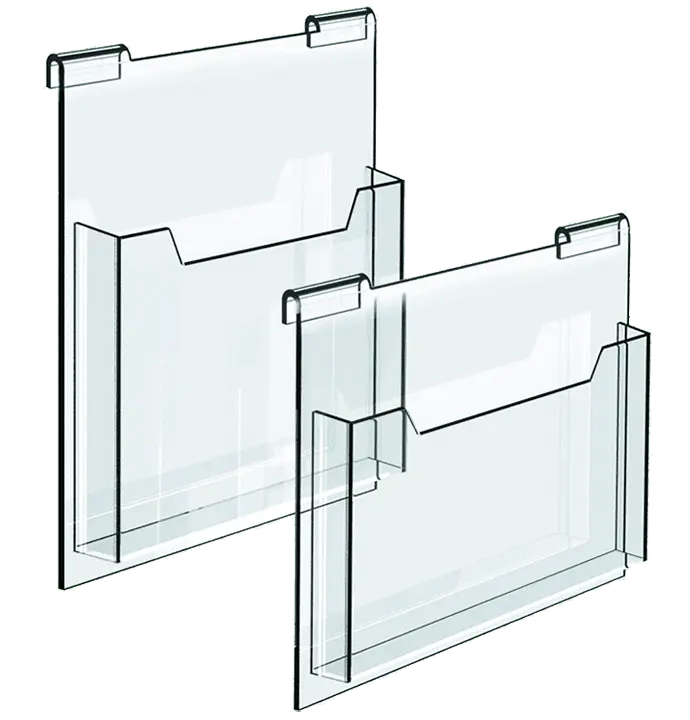

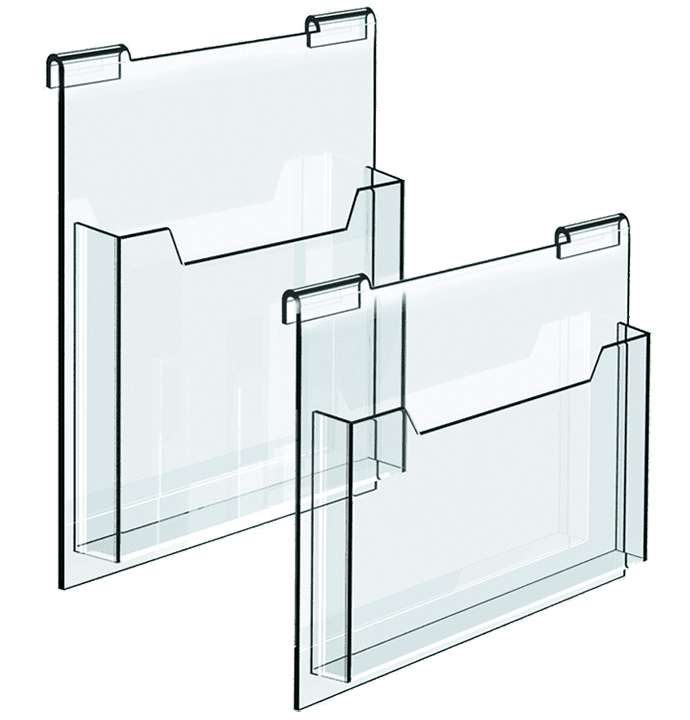

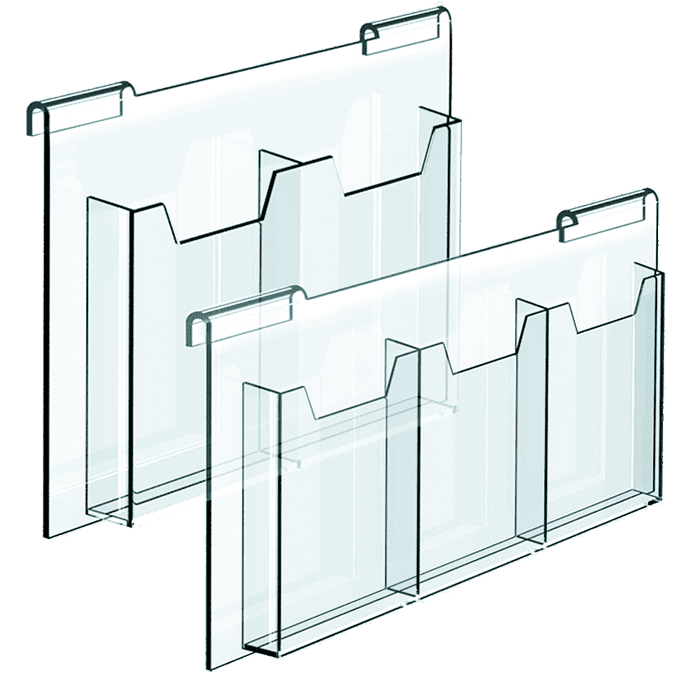

Hook-on Acrylic Literature Holders — 6mm Rods / (Holder Only)
1/8 inch thick clear acrylic literature holders – available in single or multi-pocket configurations and in few popular sizes to accommodate for tri-fold or letter format literature. Leaflets have a special designed top that can hook onto the 6mm diameter rods and can accommodate up to 160 sheets 75 gsm thick.
Item Code | Insert Size | Orientation | Style | Finish |
---|---|---|---|---|
18HALD-8511P | 8.5"W x 11"H x 1.5"D | Portrait | Single-Pocket | Clear |
18HALD-8511L | 11"W x 8.5"H x 1.5"D | Landscape | Single-Pocket | Clear |
18HALD-1117P | 11"W x 17"H x 1.5"D | Portrait | Single-Pocket | Clear |
18HALD-1117L | 17"W x 11"H x 1.5"D | Landscape | Single-Pocket | Clear |
18HALD-2-3585P | 3.5"W x 8.5"H x 1.5"D | Portrait | Multi-Pocket (2 ea) | Clear |
18HALD-3-3585P | 3.5"W x 8.5"H x 1.5"D | Portrait | Multi-Pocket (3 ea) | Clear |
18HALD-4-3585P | 3.5"W x 8.5"H x 1.5"D | Portrait | Multi-Pocket (4 ea) | Clear |
18HALD-2-5585P | 5.5"W x 8.5"H x 1.5"D | Portrait | Multi-Pocket (2 ea) | Clear |
18HALD-3-5585P | 5.5"W x 8.5"H x 1.5"D | Portrait | Multi-Pocket (3 ea) | Clear |
18HALD-2-6585P | 6.5"W x 8.5"H x 1.5"D | Portrait | Multi-Pocket (2 ea) | Clear |
18HALD-3-6585P | 6.5"W x 8.5"H x 1.5"D | Portrait | Multi-Pocket (3 ea) | Clear |
18HALD-2-8511P | 8.5"W x 11"H x 1.5"D | Portrait | Multi-Pocket (2 ea) | Clear |
Note: Use with 6mm diameter horizontal rods. Rods are mounted to wall in multiple rows at various heights and can display acrylic literature holders in both portrait or landscape orientations. Rods can only support a single literature holder per each section (distance between two mounts). Standard literature holders come in “clear” acrylic. Custom sizes are available. Cable/rod components are sold separately — select from appropriate cable/rod wall mounting hardware following the links in the “Compatibility Table” below.

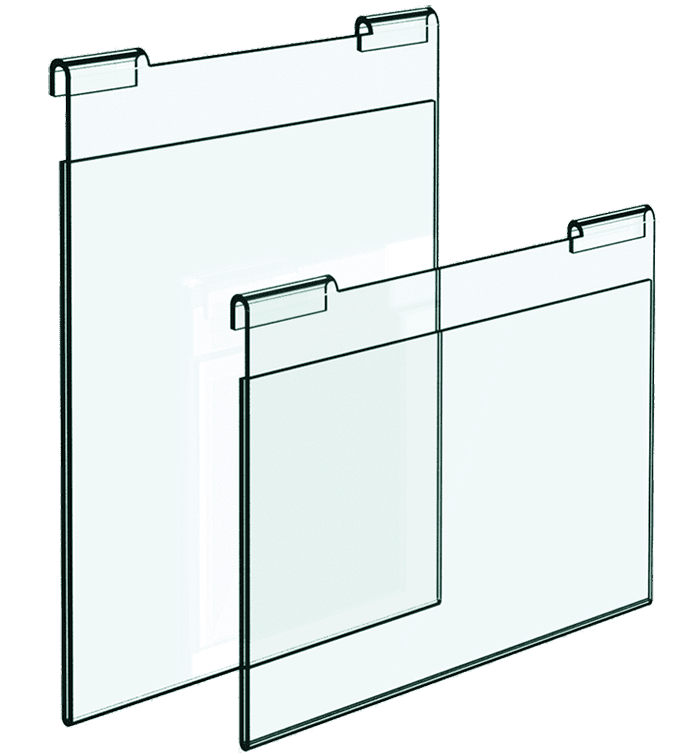

Hook-on Acrylic Holders — 10mm Rods / (Frame Only)
1/8 inch thick clear acrylic pocket/envelope style frames — available in portrait or landscape orientation and in few sizes to accommodate for standard poster-insert formats. Holders have a special designed top that can hook onto the 10mm diameter rods. Works with standard posters or prints up to 135 gsm or 1mm (1/32”) thick.
Item Code | Insert Size | Orientation | Qty / Section | Finish |
---|---|---|---|---|
18HAP-1824P/10 | 18"W x 24"H | Portrait | 1 | Clear/Non-Glare |
18HAP-1824L/10 | 24"W x 18"H | Landscape | 1 | Clear/Non-Glare |
18HAP-2228P/10 | 22"W x 28"H | Portrait | 1 | Clear/Non-Glare |
18HAP-2228L/10 | 28"W x 22"H | Landscape | 1 | Clear/Non-Glare |
18HAP-2424/10 | 24"W x 24"H | – | 1 | Clear/Non-Glare |
18HAP-2436P/10 | 24"W x 36"H | Portrait | 1 | Clear/Non-Glare |
18HAP-2436L/10 | 36"W x 24"H | Landscape | 1 | Clear/Non-Glare |
18HAP-3030/10 | 30"W x 30"H | – | 1 | Clear/Non-Glare |
18HAP-3040P/10 | 30"W x 40"H | Portrait | 1 | Clear/Non-Glare |
Note: Use with 10mm diameter horizontal rods. Rods are mounted to wall in multiple rows at various heights and can display acrylic holders in both portrait or landscape orientations. Rods can only support a specific number of holders per each section (distance between two mounts) and the number depends on the holder size and weight. Standard holders come in “clear” acrylic. To order hook-on holders in “non-glare” finish add /NG to standard item codes above (for example 18HAP-2228P/10/NG). Custom sizes are available. Cable/rod components are sold separately — select from appropriate cable/rod wall mounting hardware following the links in the “Compatibility Table” below.
Compatible Display Systems
Drop-hook & Hook-on Acrylic Shelves for Light Items — 6mm Rods / (Shelf Only)
1/4 inch thick clear acrylic shelves for use with 6mm horizontal rods — available in drop-hook and hook-on styles. Shelves are special designed to be mounted onto 6mm diameter rods — drops over the top of the rod to create a sturdy small shelf for light weight products. Can be customized to display other merchandise such as toys, eyeglasses, footwear, etc.
Item Code | Insert Size | Style | Qty / Section | Thickness | Finish |
---|---|---|---|---|---|
14HASH-0418 | 18"W x 4"H x 4"D | Hook-on | 1 | 6mm (1/4") | Clear |
14HASH-0422 | 22"W x 4"H x 4"D | Hook-on | 1 | 6mm (1/4") | Clear |
14HASH-0424 | 24"W x 4"H x 4"D | Hook-on | 1 | 6mm (1/4") | Clear |
14DHSH-0418 | 18"W x 4"H x 4"D | Drop-hook | 1 | 6mm (1/4") | Clear |
14DHSH-0422 | 22"W x 4"H x 4"D | Drop-hook | 1 | 6mm (1/4") | Clear |
14DHSH-0424 | 24"W x 4"H x 4"D | Drop-hook | 1 | 6mm (1/4") | Clear |
Note: Use with 6mm diameter horizontal rods. Rods are mounted to wall in multiple rows at various heights and can display acrylic shelves in single or multiple columns. Rods can only support a single acrylic shelf per each section (distance between two mounts). Rod mounting hardware is sold separately. Standard shelves come in “clear” acrylic. Custom sizes, styles, and finishes are also available.
We offer a diverse selection of standard display kits to streamline your display selection process. These cost-effective and elegant solutions are designed for showcasing posters or prints of various sizes. Our display solutions prioritize modularity and flexibility, allowing for easy reconfiguration or modification to accommodate changes or updates effortlessly…
Custom Acrylic Poster Holders
We specialize in custom work and welcome any of your design variations. Hook-on rod acrylic pre-folded frames come in 1/8 inch thick clear acrylic as standard. Other finishes such as non-glare, UV filtering, impact resistant, or marker-board type acrylics are also available upon request. For special orders under time constraints, we are uniquely capable of providing fast turnaround when necessary. Send your requirements and we will turn them into highly attractive working project.
Display Solutions & Ideas
LED Light Pockets
Incredibly bright, slim acrylic poster frame with glowing edges. It will make your window or wall displays stand out.
Easy Access Poster Displays
Cable suspended poster information displays for walls and windows. Provides a quick and easy way to change information.
Literature/Information Displays
Cable/rod suspended or wall mounted displays for brochures, catalogs, magazines and other promotional materials.
Hook-on-Rod Poster Displays
Create stylish, versatile interior wall displays using special designed acrylic pockets that hook onto horizontal rods.
