Acrylic Display Cases are designed for use with our cable/rod suspension systems, wall mounted standoff supports, as well as modular display stands. They are available in few standard sizes and configurations. Acrylic display cases come in clear or frost as standard. Other finishes such as matte white, color, and satin for light diffusion are also available upon request.

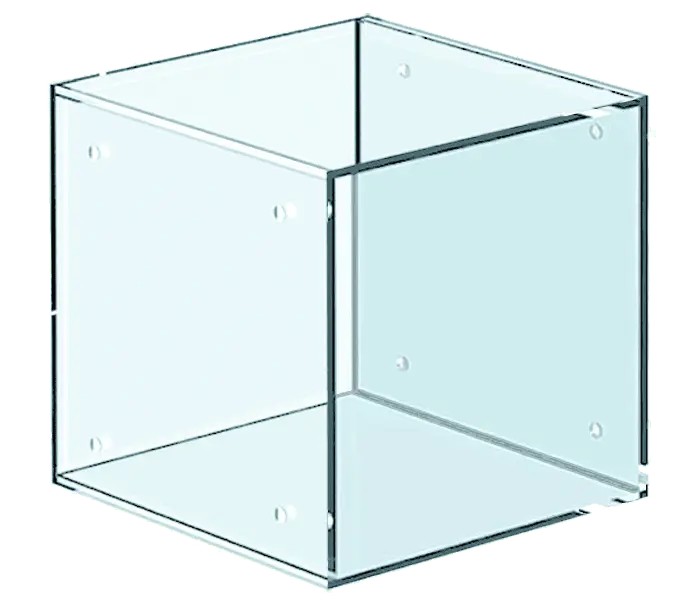

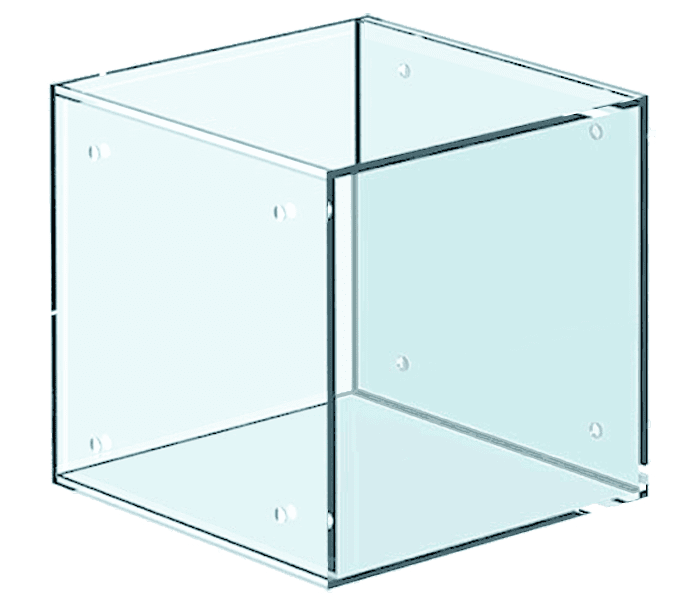

Acrylic Showcase for Cable/Rod Systems — 1/4" Thick Clear Acrylic / (Case Only)
Acrylic showcases for cable/rod suspended displays — available in clear or with a frost base and in few standard configurations such as open back or front (five sided), all enclosed with a sliding back door, and all enclosed and lockable. Cases are made of 1/4 inch thick acrylic with bevel-cut edges and come in 12″ and 15″ cube sizes as standard. Cubes have holes on sides for cable/rod support attachments. Locking cases have a sliding back-panel with a lock at the bottom. Custom sizes and configurations are also available, please contact our sales representatives for details.
Item Code | Size | Configuration | Cable Centers | Rod Centers | Thickness | Finish |
---|---|---|---|---|---|---|
14CASE-121212N | 12" x 12" x 12" | Open Case (5-Sided) | 12-5/8” | 12-3/4” | 6mm (1/4") | Clear |
14CASE-151515N | 15" x 15" x 15" | Open Case (5-Sided) | 15-5/8” | 15-3/4” | 6mm (1/4") | Clear |
14CASE-121212/CL | 12" x 12" x 12" | Locking / Sliding Door | 12-5/8” | 12-3/4” | 6mm (1/4") | Clear |
14CASE-151515/CL | 15" x 15" x 15" | Locking / Sliding Door | 15-5/8” | 15-3/4” | 6mm (1/4") | Clear |
14CASE-121212/CL/FR | 12" x 12" x 12" | Locking / Sliding Door | 12-5/8” | 12-3/4” | 6mm (1/4") | Clear / Frost Base |
14CASE-151515/CL/FR | 15" x 15" x 15" | Locking / Sliding Door | 15-5/8” | 15-3/4” | 6mm (1/4") | Clear / Frost Base |
HOW TO ORDER: Use with cable/rod suspension systems. Suspend several acrylic cases on cables/rods spaced at the same width, to be positioned side by side or one above the others. Standard acrylic cases come in “clear” or “clear+frost base”. Custom sizes, configurations, or finishes such as frost or satinice colors are also available. Cable/rod suspension and wall mounting hardware is sold separately — select from appropriate cable/rod hardware following the links in the “Compatibility Table” below.

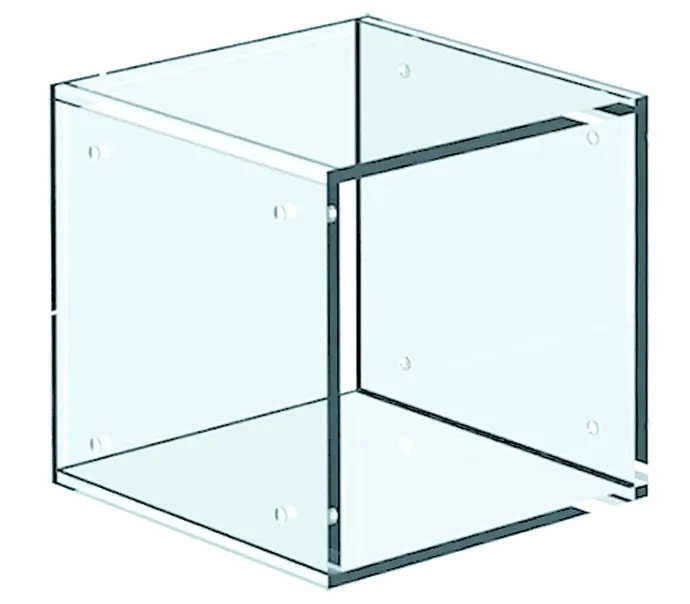

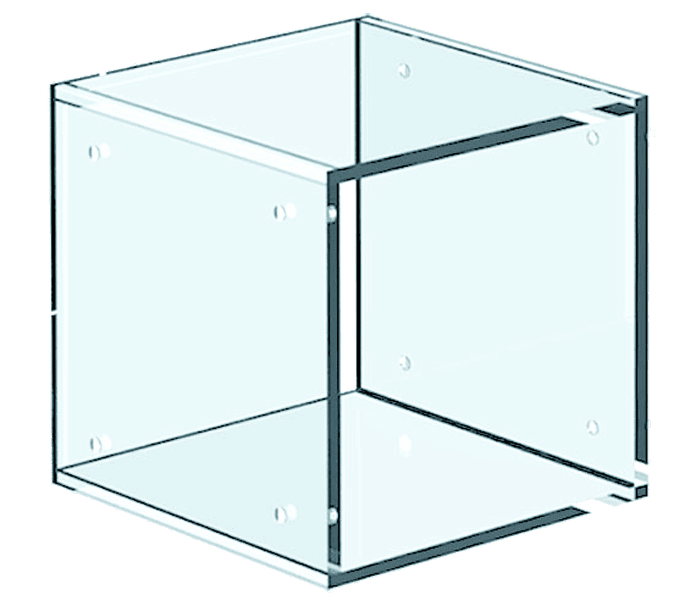

Acrylic Showcase for Cable/Rod Systems — 3/8" Thick Clear/Frost Acrylic / (Case Only)
Acrylic showcases for cable/rod suspended displays — available in clear or frost and with an open back and front configuration. Cases are made of 3/8 inch thick acrylic with bevel-cut edges and come in 12″ and 15″ cube sizes as standard. Cubes have holes on sides for cable/rod support attachments. Custom sizes and configurations are also available, please contact our sales representatives for details.
Item Code | Size | Configuration | Cable Centers | Rod Centers | Thickness | Finish |
---|---|---|---|---|---|---|
38CASE-121212 | 12" x 12" x 12" | Open Front & Back | 12-5/8” | 12-3/4” | 10mm (3/8") | Clear |
38CASE-151515 | 15" x 15" x 15" | Open Front & Back | 15-5/8” | 15-3/4” | 10mm (3/8") | Clear |
38CASE-121212/FR | 12" x 12" x 12" | Open Front & Back | 12-5/8” | 12-3/4” | 10mm (3/8") | Frost |
38CASE-151515/FR | 15" x 15" x 15" | Open Front & Back | 15-5/8” | 15-3/4” | 10mm (3/8") | Frost |
HOW TO ORDER: Use with cable/rod suspension systems. Suspend several acrylic cases on cables/rods spaced at the same width, to be positioned side by side or one above the others. Standard acrylic cases come in “clear” or “frost” finishes. Custom sizes, configurations, or finishes such as matte white are also available. Cable/rod suspension and wall mounting hardware is sold separately — select from appropriate cable/rod hardware following the links in the “Compatibility Table” below.

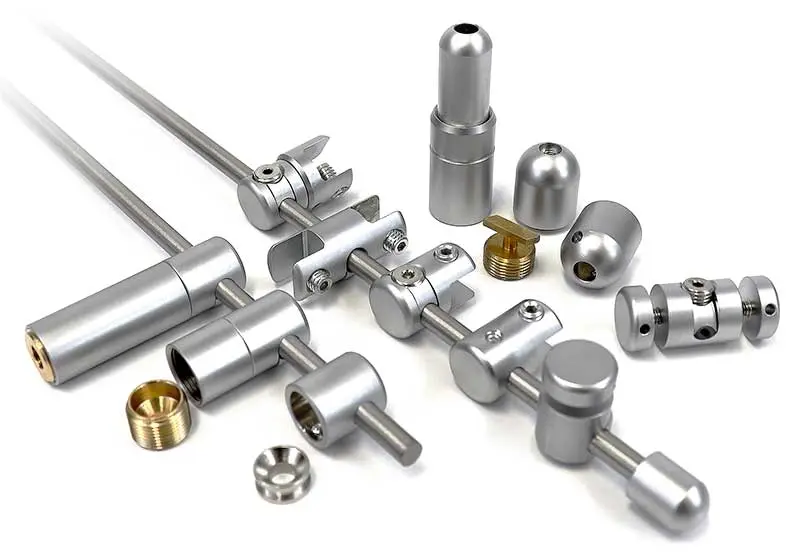

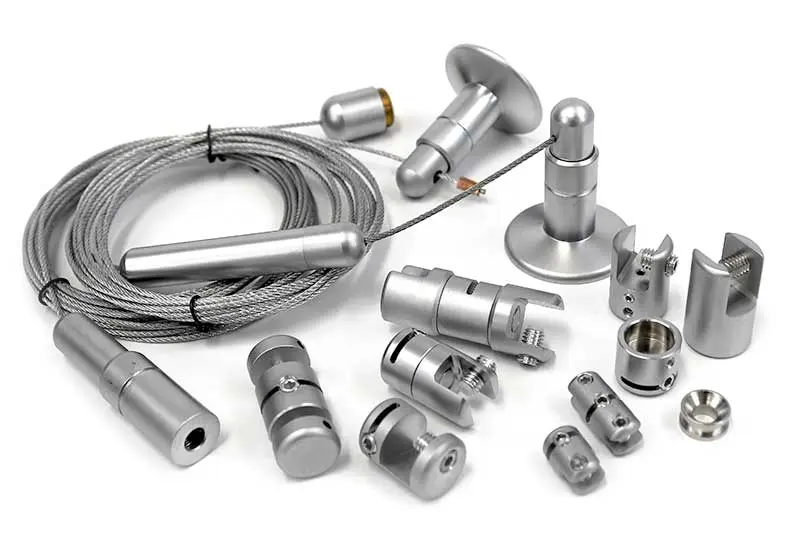

Compatible Display Systems
Use standoff supports with M4 stud-caps to mount smaller acrylic showcase displays onto the wall or fixtures.
Use standoff supports with M8 stud-caps to mount larger acrylic showcase displays onto the wall or fixtures.

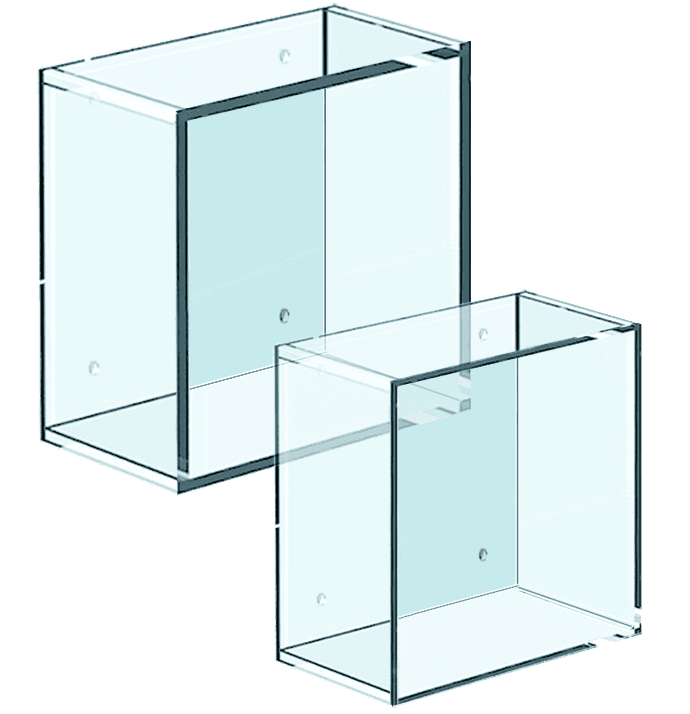

Acrylic Shadow Box Shelf/Frame for Standoffs — 1/4"-3/8" Thick Clear/Frost Acrylic / (Bundle)
Open front acrylic shadow box shelves for use with standoff wall mounts — available in clear or frost. They are made of 1/4 or 3/8 inch thick acrylic with bevel-cut edges and come in few standard sizes. Box shelves/frames have holes on the back panel for standoff support mounting. Custom sizes and configurations are also available, please contact our sales representatives for details.
Item Code | Size | Configuration | Depth | Mount Type | Thickness | Finish |
---|---|---|---|---|---|---|
14SBS-060604N | 6" x 6" x 4" | Open Front | 4” | M4 Standoff Stud | 6mm (1/4") | Clear |
14SBS-060604N/FR | 6" x 6" x 4" | Open Front | 4” | M4 Standoff Stud | 6mm (1/4") | Frost |
14SBS-080804N | 8" x 8" x 4" | Open Front | 4” | M4 Standoff Stud | 6mm (1/4") | Clear |
14SBS-080804N/FR | 8" x 8" x 4" | Open Front | 4” | M4 Standoff Stud | 6mm (1/4") | Frost |
38SBS-080804N | 8" x 8" x 4" | Open Front | 4” | M4 Standoff Stud | 10mm (3/8") | Clear |
14SBS-101005N | 10" x 10" x 5" | Open Front | 5” | M4 Standoff Stud | 6mm (1/4") | Clear |
14SBS-101005N/FR | 10" x 10" x 5" | Open Front | 5” | M4 Standoff Stud | 6mm (1/4") | Frost |
38SBS-101005N | 10" x 10" x 5" | Open Front | 5” | M4 Standoff Stud | 10mm (3/8") | Clear |
38SBS-101005N/FR | 10" x 10" x 5" | Open Front | 5” | M4 Standoff Stud | 10mm (3/8") | Frost |
14SBS-121206N | 12" x 12" x 6" | Open Front | 6” | M8 Standoff Stud | 6mm (1/4") | Clear |
14SBS-121206N/FR | 12" x 12" x 6" | Open Front | 6” | M8 Standoff Stud | 6mm (1/4") | Frost |
38SBS-1212065N | 12" x 12" x 6" | Open Front | 6” | M8 Standoff Stud | 10mm (3/8") | Clear |
38SBS-121206N/FR | 12" x 12" x 6" | Open Front | 6” | M8 Standoff Stud | 10mm (3/8") | Frost |
HOW TO ORDER: Use with wall mounted standoff supports. Standard acrylic box shelves/frames come in “clear” or “frost” finishes. Custom sizes, configurations, or finishes such as matte white are also available. Wall mounting hardware is sold separately — select from appropriate standoff hardware following the links in the “Compatibility Table” above. All acrylic box display shelves/frames for standoff wall mounting are sold in bundles of 6 (six). If you require a bulk purchase, please send us a quote request.

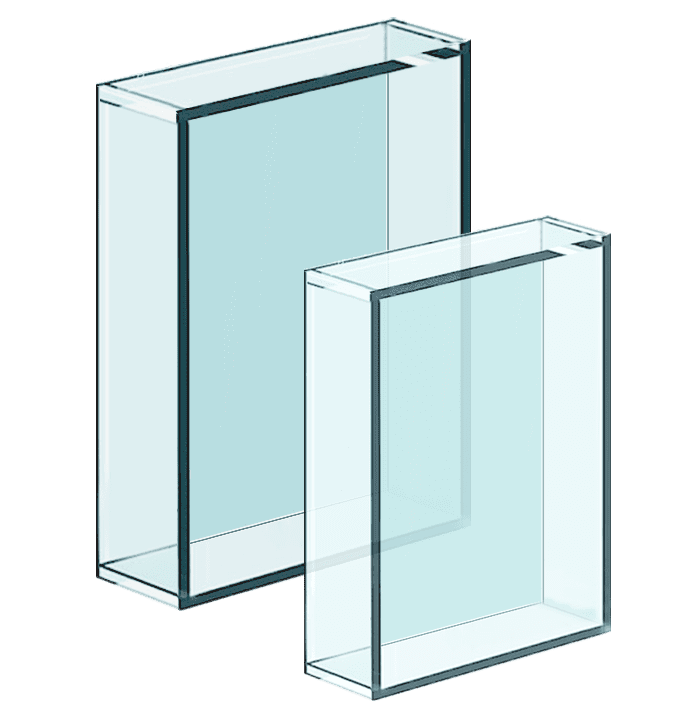

Acrylic Shadow Box Frame for Cable/Rod System — 3/8" Thick Clear/Frost Acrylic (Bundle)
Top-load acrylic shadow box-style frame for use with cable/rod suspension systems — available in clear, or frost and satin black finished side panels and clear/non-glare front. The frames come with sides made of 3/8 inch thick acrylic and are available in few standard sizes. Box shelves/frames have holes on the sides for cable/rod support mounting. Custom sizes and configurations are also available, please contact our sales representatives for details.
Item Code | Frame Size | Configuration | Depth | Mount Type | Thickness | Finish |
---|---|---|---|---|---|---|
38SBF-0810P/CL | 8" x 10" | Top-Load | 1.75” | Cable/Rod Mount | 10mm (3/8") | Clear |
38SBF-0810P/FR | 8" x 10" | Top-Load | 1.75” | Cable/Rod Mount | 10mm (3/8") | Frost |
38SBF-0810P/BK | 8" x 10" | Top-Load | 1.75” | Cable/Rod Mount | 10mm (3/8") | Satin Black |
38SBF-1114P/CL | 11" x 14" | Top-Load | 1.75” | Cable/Rod Mount | 10mm (3/8") | Clear |
38SBF-1114P/FR | 11" x 14" | Top-Load | 1.75” | Cable/Rod Mount | 10mm (3/8") | Frost |
38SBF-1114P/BK | 11" x 14" | Top-Load | 1.75” | Cable/Rod Mount | 10mm (3/8") | Satin Black |
38SBF-1216P/CL | 12" x 16" | Top-Load | 2” | Cable/Rod Mount | 10mm (3/8") | Clear |
38SBF-1216P/FR | 12" x 16" | Top-Load | 2” | Cable/Rod Mount | 10mm (3/8") | Frost |
38SBF-1216P/BK | 12" x 16" | Top-Load | 2” | Cable/Rod Mount | 10mm (3/8") | Satin Black |
38SBF-1620P/CL | 16" x 20" | Top-Load | 2” | Cable/Rod Mount | 10mm (3/8") | Clear |
38SBF-1620P/FR | 16" x 20" | Top-Load | 2” | Cable/Rod Mount | 10mm (3/8") | Frost |
38SBF-1620P/BK | 16" x 20" | Top-Load | 2” | Cable/Rod Mount | 10mm (3/8") | Satin Black |
38SBF-1824P/CL | 18" x 24" | Top-Load | 2.5” | Cable/Rod Mount | 10mm (3/8") | Clear |
38SBF-1824P/FR | 18" x 24" | Top-Load | 2.5” | Cable/Rod Mount | 10mm (3/8") | Frost |
38SBF-1824P/BK | 18" x 24" | Top-Load | 2.5” | Cable/Rod Mount | 10mm (3/8") | Satin Black |
HOW TO ORDER: Use with cable/rod suspensions. Standard acrylic box shelves/frames come in “clear”, “frost” or “satin black” finishes. Custom sizes, configurations, or finishes are also available. Cable/rod suspension is sold separately — select from appropriate cable/rod hardware following the links in the “Compatibility Table” above. All acrylic shadow box frames are sold in bundles of 12 (dozen). If you require a bulk purchase, please send us a quote request.
We offer a diverse range of standard display kits designed to simplify your selection process. Our solutions are cost-effective, stylish, and ideal for showcasing various items like jewelry, cosmetics, collectibles, and art. Each display option provides versatility and can be effortlessly adjusted to accommodate any changes or updates…
Custom Acrylic Display Showcases
We specialize in custom work and welcome any of your design variations. Acrylic display cases come in 1/4-3/8 inch thick clear or 1/4 inch thick frost as standard. Other materials and finishes such as matte white, satin colors are also available upon request. For special orders under time constraints, we are uniquely capable of providing fast turnaround when necessary. Send your requirements and we will turn them into highly attractive working projects.
