The customization of cable/rod suspended partitions and screens offers a range of options to tailor the design to specific needs. These customizations include selection of the cable/rod configuration that best suits the project’s requirements, choosing the necessary supports to hold the panels/screens based on thickness, selecting from a variety of panel finishes, selecting the cable/rod mounting hardware finish from satin chrome or natural stainless steel. Use the Quote Request Form or the links below to provide sizes and details on your project, please note that a minimum order quantity on certain décor styles and finishes may apply.
Cable/Rod Suspended Partitions — Standard Panel Sizes
Our frameless partition panels can be suspended individually or in groups, offering standard sizes of 24″ x 96″ and 48″ x 96″ (full-sheet). Additionally, smaller sizes or split sections cut from the same sheet are available. Acrylic resin panels can be custom-cut to fit your space precisely. Panel finishing options include laser polish, pencil profile (CNC router), or eased matte edge finishing on exposed edges, varying by material type.
- Full-Size Sheet — Typically refers to standard dimensions of acrylic resin sheets, such as 48″ x 96″.
- Narrow and Short-Size Panels — Short-size panels can enhance visual aesthetics and structural integrity of partitions but may impact yield and cost.
- Quarter-Size and Half-Size Panels — Pricing differences between full-size and half-size acrylic sheets are minimal unless edge finishing is required.
- Split-Size Panels — Adjusting sizes on smaller split-size acrylic resin panels can optimize yield for cost efficiency.
Architectural resin panels used for suspended partitions are available in various décor and finishes. They require a special order and a minimum quantity depending on decor style, color, or finish. Lead time varies depending on material availability as well as production and delivery times.
- Colorless/Frost Collection — Matte or frost acrylic panels with a robust textured surface, discretely light-diffusing, and pleasant to the touch.
- Luminous Décor Collection — Translucent color acrylic panels in various dramatic colors for light diffusing and optimum visual impact.
- Impressions Décor Collection — Texture embossed acrylic panels with a fashionable, stylish and highly aesthetic look.
- Elements Décor Collection — Decorative resin panels made from a combination of natural and man-made components weaved and encapsulated into clear or translucent resin.
Acrylic Resin Panels — Thickness and Surface Finishes
Depending on the décor style the acrylic resin panels come in 0.118″ (3mm), 0.236″ (6mm), 0.354″ (9mm), or 0.472″ (12mm) thickness and in gloss, satin or matte surface finishes. The 0.236″ (6mm) and 0.354″ (9mm) thicknesses are commonly used for cable/rod-suspended partitions, offering a balance between durability and versatility for various applications. Panels can be opaque, transparent, or have a translucent color effect.
- 3mm, 1/8″ (0.118″) Thick Panels — Mostly utilized for interior wall decor applications.
- 6mm, 1/4″ (0.236″) – 10mm, 3/8″ (0.354″) Thick Panels — Commonly used with cable/rod suspended partitions.
- 12mm, 1/2″ (0.472″) Thick Panels — Used with 10mm rod suspension system for creating partition walls and screens that require a more secure and stable installation.

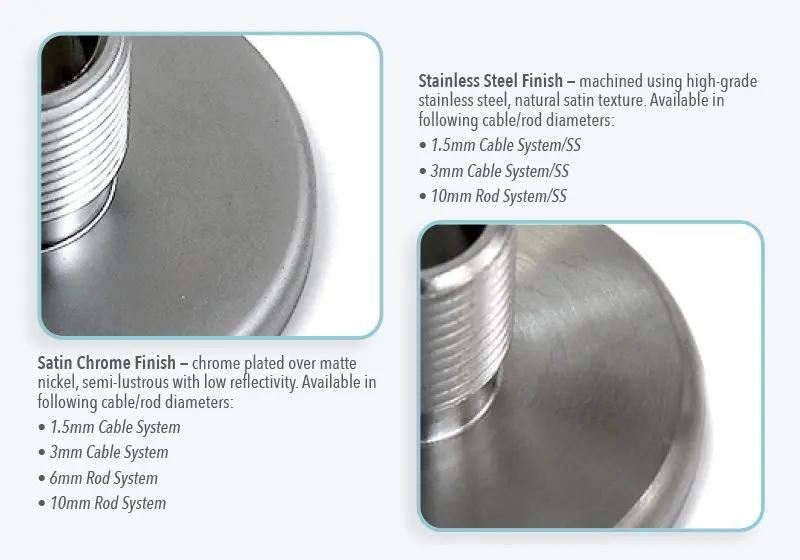

Our cable/rod suspension systems offer a range of finishes tailored to diverse design requirements, enhancing the overall aesthetic of suspended displays. Available finishes include:
- Satin Chrome Finish (Matte Nickel/Chrome Plating) — Chrome plating over matte nickel creates a durable, uniform finish with a semi-lustrous appearance and low reflectivity.
- Natural Stainless Steel Finish — Parts are machined and polished to achieve a satin/semi-gloss texture, adding a sleek touch to the suspension system.
Our optional base supports are designed to be compatible with standard 1.5mm and 3mm cable suspension sets, as well as 10mm rod ceiling and floor fixings. Available in 25mm (1″), 38mm (1-1/2″), and 50mm (2″) diameters, these bases can be used at both ends of cable/rod sets — for top fixing and bottom floor tensioning. For heavier applications, the 50mm (2″) heavy-duty base supports are recommended.
- Ceiling Fixing — Ensure that cable/rod top fixings are securely anchored to ceiling joists, blocking, or the deck above a drop ceiling at weight-bearing points to prevent failure.
- Compatibility — Note that some cable suspension kits (e.g., CA4, CA4-3) and the 6mm rod system may not support the CB-25, CB-38, or CB-50 bases.
- Liability — Installers are solely responsible for correct fixing, and no liability will be assumed for incorrect installation.
Adjustable-Angle Fixings for Cable Systems
Utilize cable suspension kits with adjustable top fixings for suspending partitions from angled or cathedral ceilings. Installing angled cable systems may pose challenges, necessitating precise measurements and adjustments to ensure proper alignment and stability.
- Ceiling Fixing — Anchor cable top fixings exclusively to ceiling joists or blocking; avoid installation into plasterboard (drywall) ceilings.
- Weight Distribution — Consider the impact of angled cable systems on weight distribution across panels to prevent uneven stress on the suspension system.
- Panel Thickness Limitation — Avoid using panels over 1/4″ in thickness with cables suspended in an angled configuration unless panel size and weight allow for such application. Heavy weight may affect the performance of the cable system.
Cable/Rod Suspension Systems — Hardware Options
Our cable/rod display systems offer various hardware options for mounting acrylic resin panels, along with additional components and installation accessories like ceiling-to-floor rails/tracks to enhance design freedom and flexibility.
- Side-Grip Panel Supports — Ideal for suspending acrylic panels without holes from the sides.
- Top/Bottom Panel Supports — Recommended for smaller split-size panels, these supports suspend acrylic panels without holes from the top and bottom.
- Panel Supports with Stud-Caps — Designed for suspending acrylic panels drilled for M4 or M6 studs, these supports accommodate panels placed in front of the cables/rods and are available for 1/4″, 3/8″, and 1/2″ thick panels.
Adjustable-Angle Fixings for Rod Systems
Utilize a 10mm rod suspension system with adjustable top fixings to suspend partitions from angled or cathedral ceilings. Angling the rod system with partitioning panels may add complexity and limitations during installation, necessitating precise measurements and adjustments for proper alignment and stability.
- Ceiling Fixing — Anchor rod top fixings solely to ceiling joists or blocking; avoid installation into plasterboard (drywall) ceilings.
- Structural Integrity — Consider how angling the rod system may impact the overall structural integrity of the installation, potentially affecting the stability of the partitions.
- Weight Distribution — Be mindful of how angled rod systems may influence weight distribution across panels to prevent uneven stress on the suspension system.
- Panel Thickness Limitation — Avoid using panels over 1/4″ in thickness with rods suspended in an angled configuration unless panel size and weight allow for such application. Heavy weight may affect the performance of the rod system.
Dual-Grip Cable Standoffs for Cable/Rod Suspended Partitions
Our dual-grip cable standoffs with wide projection are specifically designed to construct suspended double-depth and/or double-sided ornamental screens. These standoffs can support two screens on the same cables and are available in different projection lengths to space screens apart at 60mm (2-3/8”), 70mm (2-3/4″), and 95mm (3-3/4″).
Add-on Products and Services
We offer photographic quality printing for posters, graphics and signage at very competitive prices. Printing is available on a variety of substrates such as satin, gloss or textured photo-base paper, and polyester films.
We design and fabricate a wide range of acrylic display accessories for use with cable/rod, rail, standoff, and modular systems. We use various acrylic material type such as clear, non-glare, color, frost, UV filtering, or impact resistant.
Add depth and enhance the visual appeal of your display with dimensional letters and logos. Depending on your requirements we will fabricate lettering, logos, and special graphics in plastic, metal, and other popular materials.
