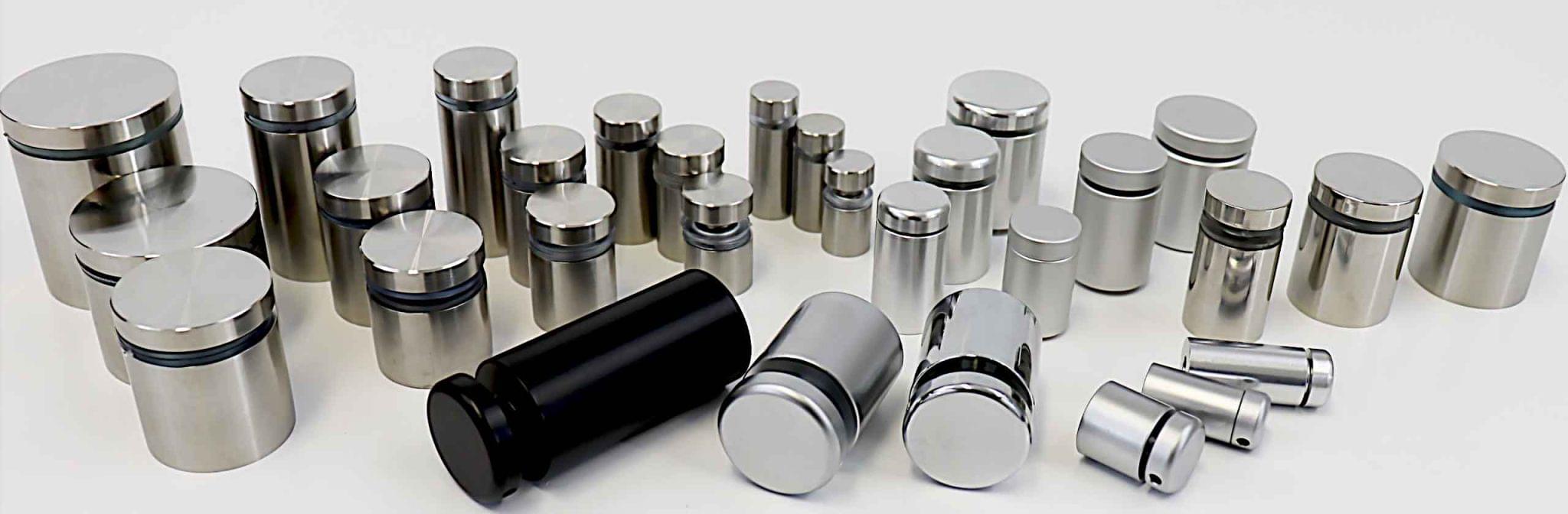

Through Sign Standoffs & Spacers / Specifications

Weight Bearing Information – Recommended safety working load limit per standoff diameter

Standoff Diameter

Aluminum

Brass

Stainless

(per one fixing mounted on drywall)
12mm (1/2 inch)5 lb (2 kg)5 lb (2 kg)
15mm (5/8 inch)8 lb (3.5 kg)8 lb (3.5 kg)8 lb (3.5 kg)
20mm (3/4 inch)

15 lb (6.8 kg)15 lb (6.8 kg)15 lb (6.8 kg)
25mm (1/2 inch)

25 lb (11 kg)25 lb (11 kg)25 lb (11 kg)
32mm (1-1/4 inch)

25 lb (11 kg)
38mm (1-1/2 inch)

30 lb (13.6 kg)

Note: Additional blocking in the wall may be required for mounting heavier panels.

Composition and Materials

The sign/panel standoff supports are high-quality, durable, and well designed. They are supplied in a standard two-part or three-part fitting configuration for easy installation. Fittings are made of various metal alloys – high-grade aluminum with a standard satin anodized finish, solid brass alloy UNS C3604/CZ121 (CuZN39Pb3) with a standard satin chrome finish, and solid stainless steel #SS201 with a satin brushed finish. Other custom finishes such as clear or color anodized, polished chrome, or brushed (warm) nickel plating are available upon request. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6. All the metal components come with a 12-month warranty.

Colors and Finishes

Clear Anodized Aluminum Finish / Fittings with Round-Edge

Clear Anodized

Satin Chrome Finish over Brass Alloy / Fittings with Round-Edge

Satin/Matte Chrome

Polished Chrome Finish over Brass Alloy / Fittings with Round-Edge

Polished Chrome

Brushed Nickel Warm Chrome Finish over Brass Alloy

Brushed Warm Nickel

Matte Brushed Stainless Steel Finish

Brushed Stainless Steel

Black Powder Coated Finish over Aluminum / Fittings with Round-Edge

Black Powder Coated

*Current active links are for items available in stock. We are constantly updating our inventory of new items and finishes.

Product Limitations

Most sign and panel support system components perform well in all closed environments as long as they are not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type #SS302/304 or #SS316 standoff supports that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Precautions / Performance and Safety

Use product properly, in a safe manner and for the application for which it was intended. Always check the installation surface to ensure the substrate is strong enough to hold the weight of the panel. All installation must be done with proper hardware and protective gear to ensure safety. Attachments must be properly installed and meet the recommended Safety Working Load Limit.

Environmental Considerations

Standard stock components are suggested and warranted for interior use only. Nova Display Systems practices sustainability and recycling. Most of our display systems are fabricated from non-ferrous recycling metals – aluminum, stainless steel, brass, bronze and copper alloys. With close to 100 percent recyclable content, these metals can be repeatedly recycled into similar or other products with no loss of quality, as reprocessing does not damage their molecular structure.
